7ft 3 Rails White PVC Privacy Fence, Full Privacy Vinyl Fence Panels

Are you still grappling with the challenge of finding a privacy fence that seamlessly combines beauty with practicality? Look no further! Our 7 ft 3 Rails Vinyl Privacy Fence is the perfect answer.

Crafted from high-quality vinyl, a high-performance polymer celebrated for its outstanding stability and durability, this fence offers numerous advantages. Unlike traditional wooden or iron fences, it is impervious to rust, rot, and pest infestations. This not only spares you the inconvenience but also saves you from the recurring costs associated with maintenance, repairs, and replacements.

Leveraging advanced extrusion molding technology, the fence features a dense and uniform internal structure. Our unique 3 rail design (with top, middle, and bottom rails sized at 50.8 × 152.4 × 2388 mm) significantly outperforms our 2 Rails White Vinyl Privacy Fence in terms of overall strength and stability. Each fence panel, measuring 287 × 22.3 × 840 mm, and with 16 panels in total, forms a robust and reliable barrier.

Standing at 7 ft (approximately 2.1 meters) tall, it effectively obstructs outside views, creating a private and serene personal space. The fence’s clean, white exterior allows it to integrate effortlessly with any architectural style and landscape design. Compatible with vinyl gates, it is suitable for both residential and commercial applications, enhancing the overall visual appeal.

As a professional fencing supplier, we take pride in offering a wide variety of privacy fencing panels and accessories. The PVC material itself exhibits excellent weather resistance, impact resistance, and corrosion resistance, ensuring long-term durability and reliability. In addition to standard sizes, we can provide different heights, widths, styles, and even custom colored options to meet your specific requirements.

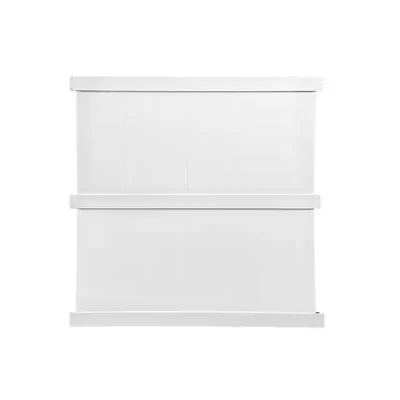

PVC Privacy Fence Detail

• Top, Middle, and Bottom Rail: 50.8 × 152.4 × 2388 mm.
• Panel: 287 × 22.3 × 840 mm, with a set containing 8 panels.
• Material: Premium vinyl privacy panel with a smooth surface for seamless privacy.
• Structural Components: Aluminum beams and H-beams, corrosion-resistant and highly durable.
• Color: Standard white, and custom colors are available.

7ft 3 Rails Full Privacy PVC Fence Specification

PVC Privacy Fence Color Options:

3 Rails Full Privacy PVC Fence Post Cap Options

Arbor Caps	External Flat Cap	Flat Cap
Gothic Cap	Sharp Point Cap	New England Cap

7ft 3 Rails Full Privacy PVC Fence Panel Production Process

Raw Material Formulation

PVC resin is combined with a proprietary blend of additives in a high-shear mixer, ensuring homogeneous dispersion and optimal material properties.

Extrusion Processing

The formulated PVC compound is fed into a single- or twin-screw extruder, where it is plasticized and forced through a profile die. Cooling is achieved via water bath or air cooling, followed by controlled traction to maintain dimensional stability.

Automated Cutting

Extruded profiles are automatically cut to specified lengths using precision cutting equipment, ensuring consistent component dimensions.

Machining Operations

CNC milling equipment is employed to create precise holes, slots, and other features required for assembly, adhering to strict tolerances.

Surface Preparation

Components are subjected to a multi-stage cleaning process, including degreasing and rinsing, to remove surface contaminants and ensure optimal adhesion for any subsequent coatings or treatments.

Mechanical Assembly

Trained technicians assemble the fence components using specialized jigs and fixtures, ensuring proper alignment and secure fastening.

Quality Control Inspection

Each assembled fence undergoes a comprehensive inspection, including dimensional verification, visual inspection for defects, and functional testing of hardware.

Protective Packaging

Finished fence components are carefully packaged using appropriate materials and methods to prevent damage during storage and transportation.

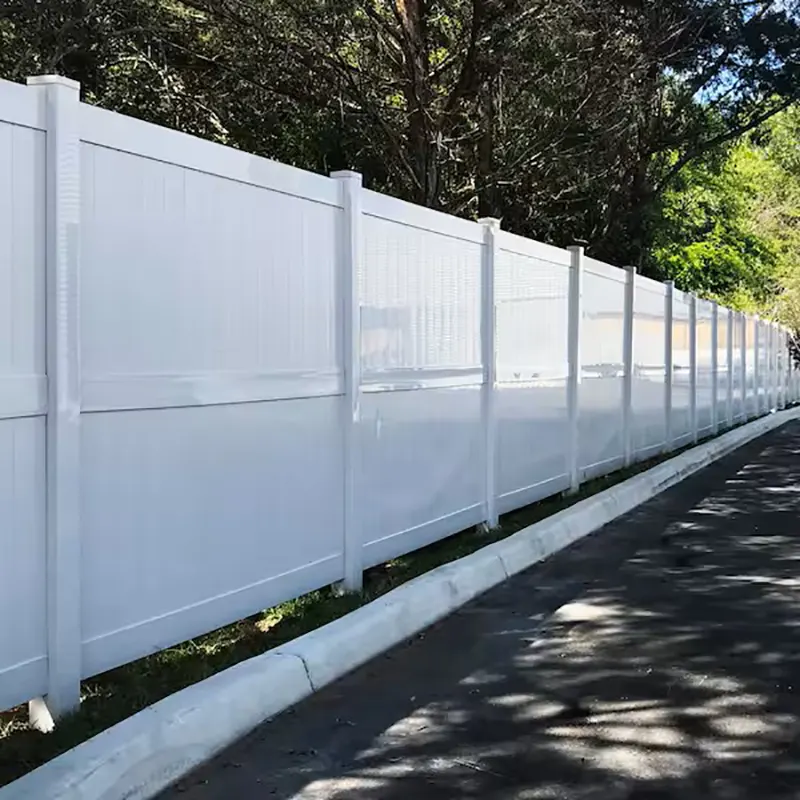

3 Rails Vinyl Privacy Fence Application

• Family Patio: Creates a separate space for the yard, blocking outside views, protecting family privacy, and preventing pets or children from running around freely.
• Garden: Separates the garden from other areas, providing a relatively independent growing environment for flowers and plants.

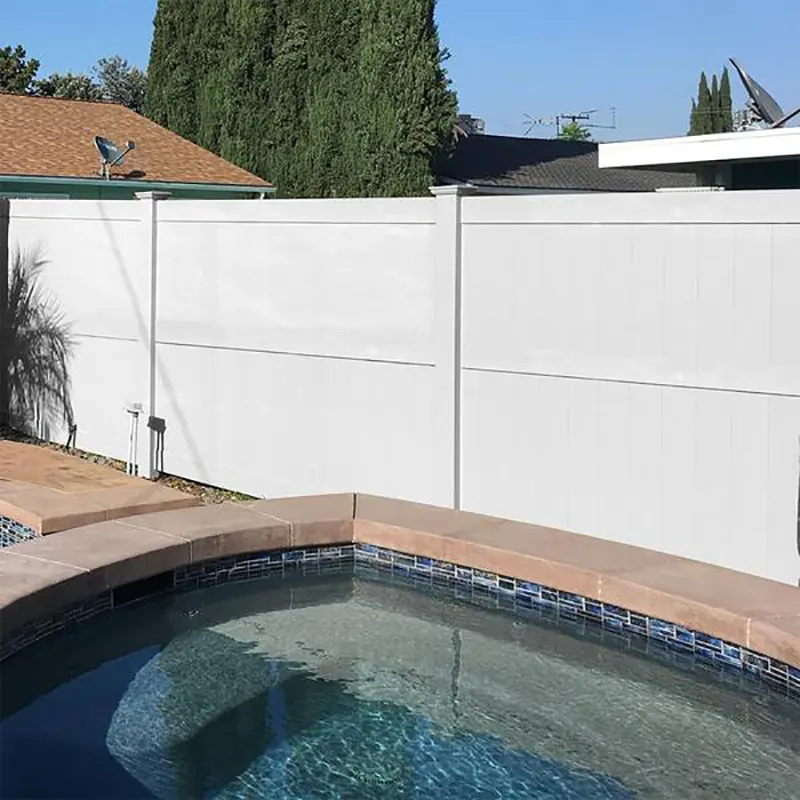

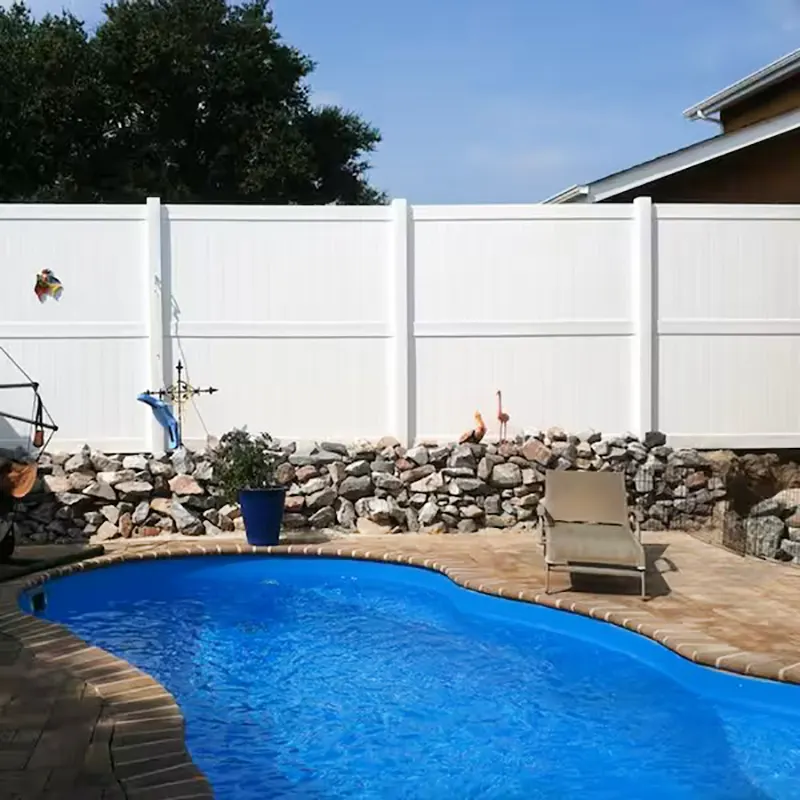

• Swimming Pool Surroundings: Ensures the safety of the swimming pool area, preventing children or unauthorized personnel from entering.

Full Privacy Vinyl Fence Packaging

• For 7ft 3 rails Full Privacy PVC Fence, we usually use stretch film packaging for packaging.
• It can reduce collisions in the logistics process. Of course, it can be packaged according to customer needs.
• At the same time, we use sea transportation, which is convenient, stable, and fast.
