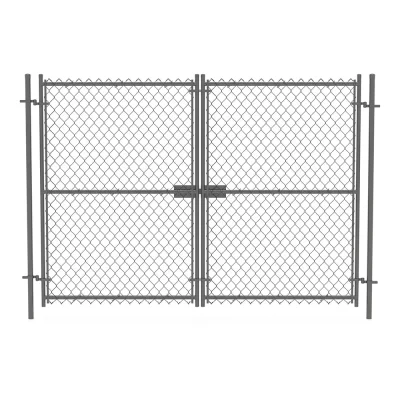

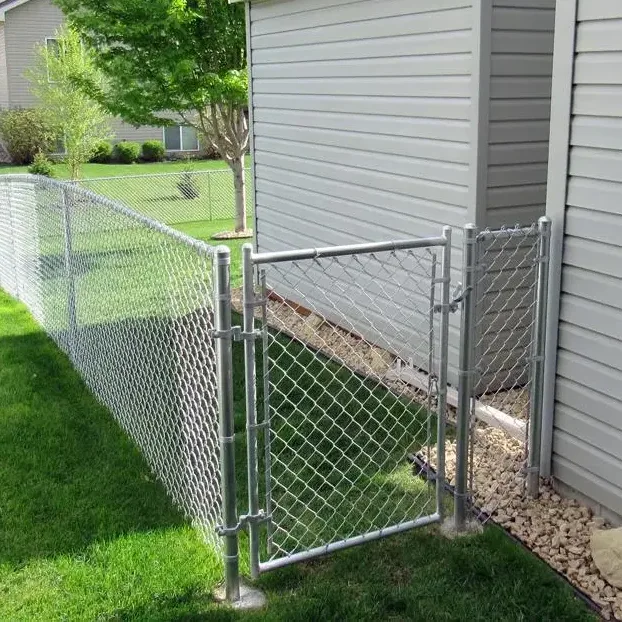

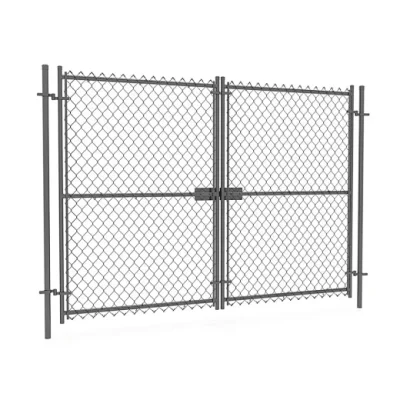

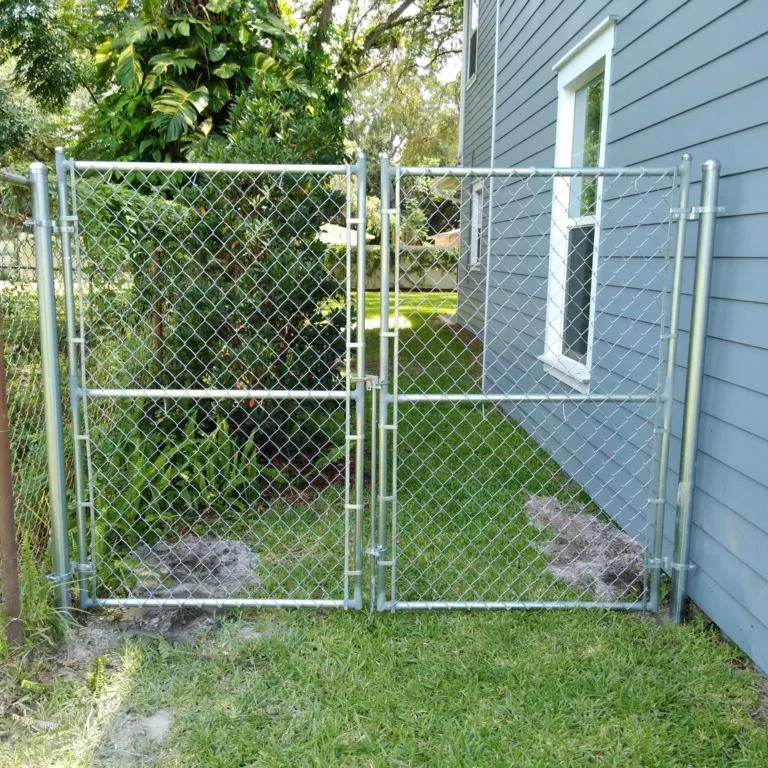

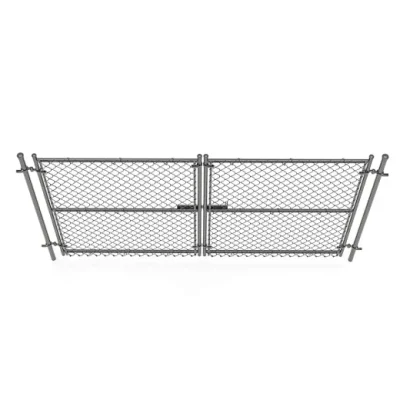

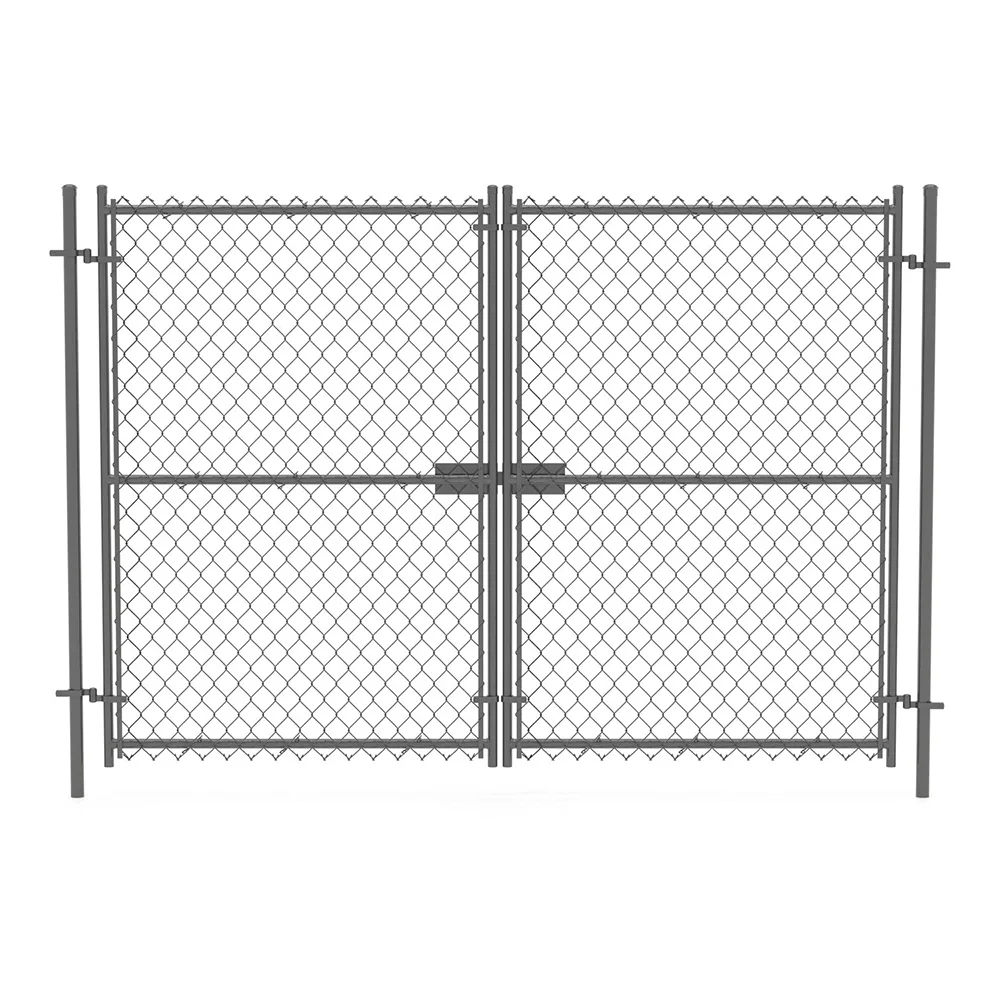

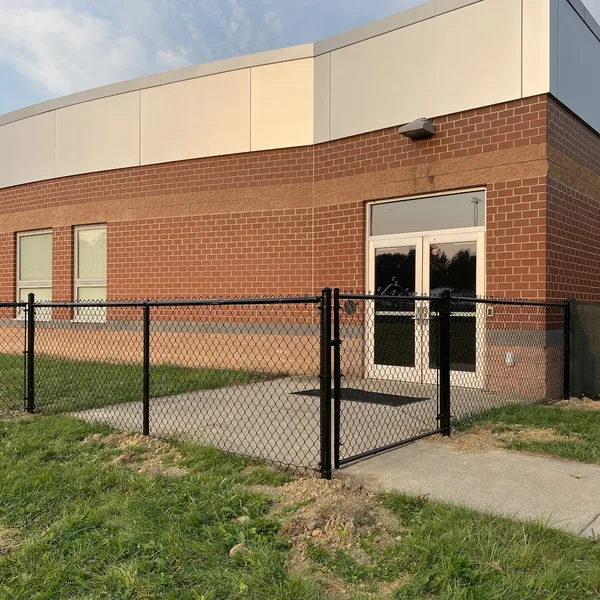

Sinotop Fence’s chain link fence gates integrate seamlessly with standard chain link fence systems, providing a durable and cost-effective access control solution for industrial and commercial locations. Made of high-quality steel, the gates are available in single or double leaf options. The gate design balances lightweight design with structural integrity, ensuring long-term, reliable operation in high-traffic environments.
The gate frame utilizes 1.315-inch round tubing or 1.25-inch x 1.25-inch square tubing with a wall thickness of 0.065 inches. This provides an optimal strength-to-weight ratio and supports gate leaf widths of 48 inches and above. For wider spans exceeding 48 inches, reinforced 2.375-inch round columns or 2.5-inch x 2.5-inch square columns are used.
Wall thicknesses of 0.083-inch to 0.095-inch ensure structural stability and prevent sagging under repeated use. All steel components are hot-dip galvanized to resist corrosion, and the modular design simplifies installation and future maintenance.
Sinotop Fence offers customized column configurations to meet the needs of various project sizes. Ideal for warehouses, logistics parks, or public facilities, these gates offer unparalleled adaptability, whether protecting vehicle entrances, perimeter boundaries, or restricted areas. Leveraging decades of manufacturing experience, we ensure each component meets your site’s functional and aesthetic requirements.

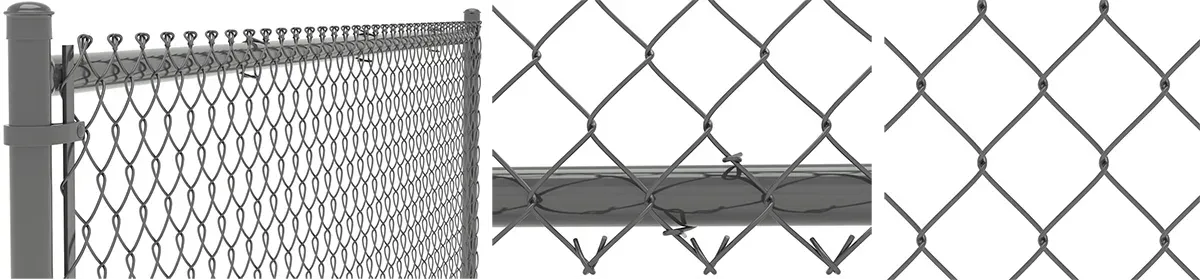

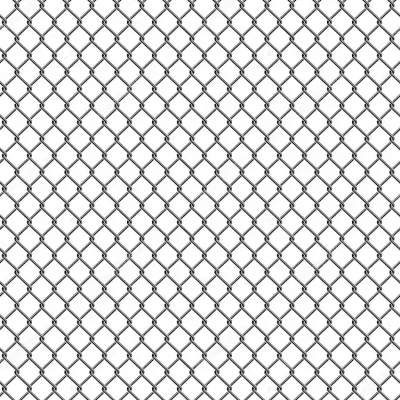

Chain Link Gate Details
- Gate Frame Construction: Utilizes 1.315-inch outer diameter round tubing or 1.25-inch x 1.25-inch square tubing, with a wall thickness of up to 0.095 inches, providing excellent deformation resistance.
- Post Support: Reinforced posts, available in 2.375-inch round or 2.5-inch x 2.5-inch square, ensure stability and load-bearing capacity for wide door leaves.
- Material Optimization: Round tubing weighs 0.868 lbs/ft and square tubing weighs 1.05 lbs/ft, achieving a lightweight design while maintaining structural strength.
- Easy Installation: Prefabricated frames and standardized hardware, including hinges and latches, significantly reduce on-site installation time.

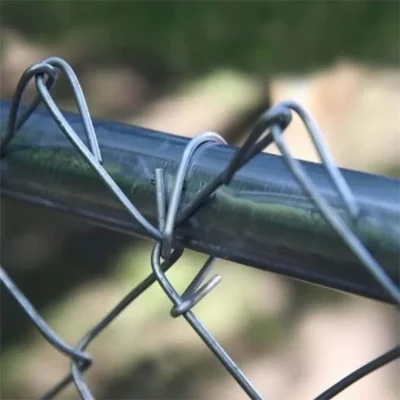

- Pedestrian Safety: The top steel wire is meticulously treated to prevent scratches.
Chain Link Fence Gate Specifications
| Minimum Dimension of Gate Frame |
| Material: steel |
Outside Dimension Pipe (in) |
Wall Thickness (in) |
Nominal Weight (lb/ft) |
| Round tube |
1.315 |
0.065 |
0.8681 |
| Square tube |
1.25 by 1.25 |
0.065 |
1.05
|
| Gate Posts Gate Leaf Width |
| For Gate Leaf Width of 48 in |
| Material: steel |
Outside Dimension Pipe |
Wall Thickness (in) |
Nominal Weight (lb/ft) |
| Round post |
1.90 |
0.065 |
1.274 |
| Square post |
2 by 2 |
0.08 |
2.09 |
| For gate leaf width over 48 in |
| Material: steel |
Outside Dimension Pipe |
Wall Thickness (in) |
Nominal weight (lb/ft) |
| Round post |
2.375 |
0.095 |
2.31 |
| Square post |
2.5 by 2.5 |
0.083 |
2.73 |
Product Advantages
Robust Structural Integrity
Constructed from high-tensile steel tubing (round: 1.315″O.D. / square: 1.25″×1.25″) with wall thicknesses up to 0.095″, the gate frame resists deformation under heavy use. Reinforced posts (round: 2.375″/ square: 2.5″×2.5″) ensure stability for wider leaf widths, preventing sagging even with frequent operation.
Corrosion-Resistant Durability
Hot-dip galvanized surfaces protect against rust and environmental wear, ideal for outdoor applications in coastal, humid, or industrial zones. Optional powder coatings add extra layers of defense while enhancing aesthetic appeal.
Adaptable Configurations

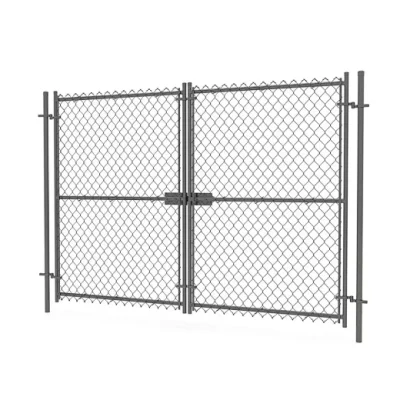

Single/Double Swing Options: Customize access points for pedestrian or vehicle traffic, with leaf widths ranging from 48″to heavy-duty spans exceeding 48″.
Weight-Optimized Components
Round tubes (0.868 lb/ft) and square tubes (1.05 lb/ft) reduce bulk without compromising strength.
Reinforced Post Anchoring
Gate posts (up to 2.73 lb/ft for 2.5″×2.5″ square) provide unmatched load-bearing capacity for high-traffic areas.
Ease of Installation & Maintenance
Pre-fabricated frames and standardized hardware (hinges, latches) enable quick on-site assembly. Galvanized finishes require minimal upkeep.
Scalable Security Solutions
Tailored for diverse applications—warehouses, logistics parks, utility facilities, or commercial complexes—the gates balance visibility, access control, and intrusion deterrence.
Manufacturer Expertise
Every component undergoes rigorous quality checks, ensuring compliance with international safety standards (e.g., ASTM, ISO).
Chain Link Fence Gate Application
Sinotop Fence’s Chain Link Fence Gate is a versatile solution for securing critical access points across industries. Designed to meet the demands of high-traffic, harsh environments, and aesthetic-sensitive sites, it ensures reliable perimeter control while enabling seamless operational flow.
- Airports & Transportation Hubs – Secure restricted vehicle entry points like tarmacs and cargo zones.
- Prisons & Detention Facilities – Tamper-resistant gates for high-security perimeters with emergency access.
- Industrial Plants – Streamline logistics with durable gates for forklift-heavy environments.
- Data Centers & Utilities – Balance visibility and intrusion prevention for critical infrastructure.
- Commercial Complexes – Blend security with architectural aesthetics in retail or office spaces.
- Construction Sites – Adaptable gates for temporary perimeters on unstable terrain.
- Border Checkpoints – Reinforced barriers to withstand forced entry attempts.
- Energy Facilities – Protect gates in corrosive or high-risk industrial environments.
- Logistics Parks – Control truck access in high-traffic distribution hubs.

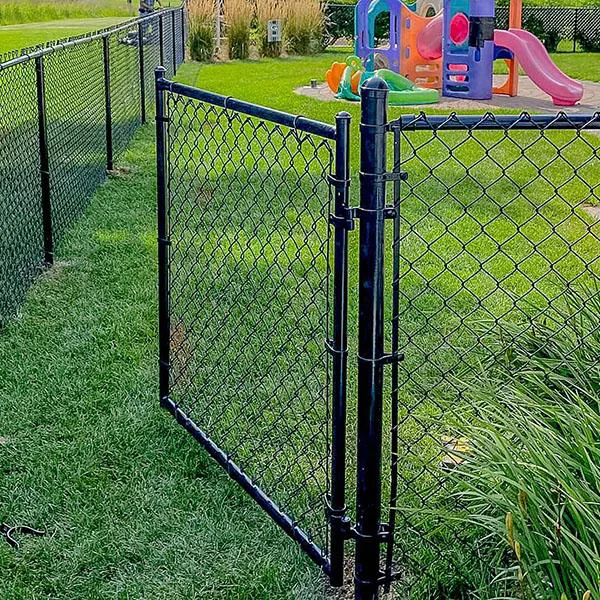

- Educational Campuses – Safeguard playgrounds and parking areas from unauthorized entry.
- Municipal Projects – Secure public event spaces or roadwork zones efficiently.

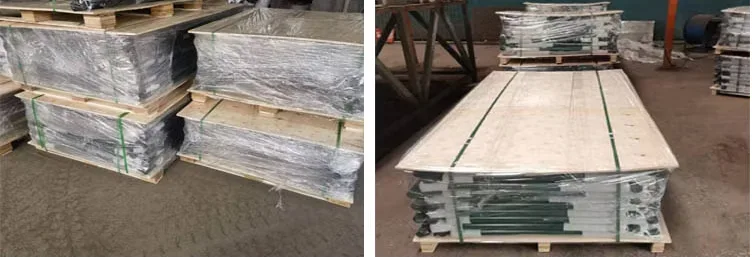

- To ensure your order arrives in perfect condition, we employ a robust packaging process.
- Each product is carefully wrapped in medium-thick stretch film, and secured to an iron pallet.
- Moreover, four-corner cardboard protection is added to prevent damage during transit.
- For added security, packing tape is used to tightly bind the entire package.
- In cases where multiple pallets are shipped, we utilize plywood or iron racks to separate them, preventing shifting and potential damage.
