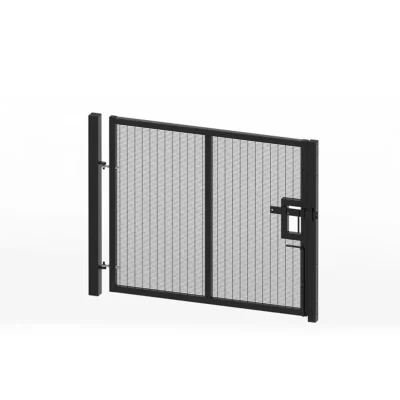

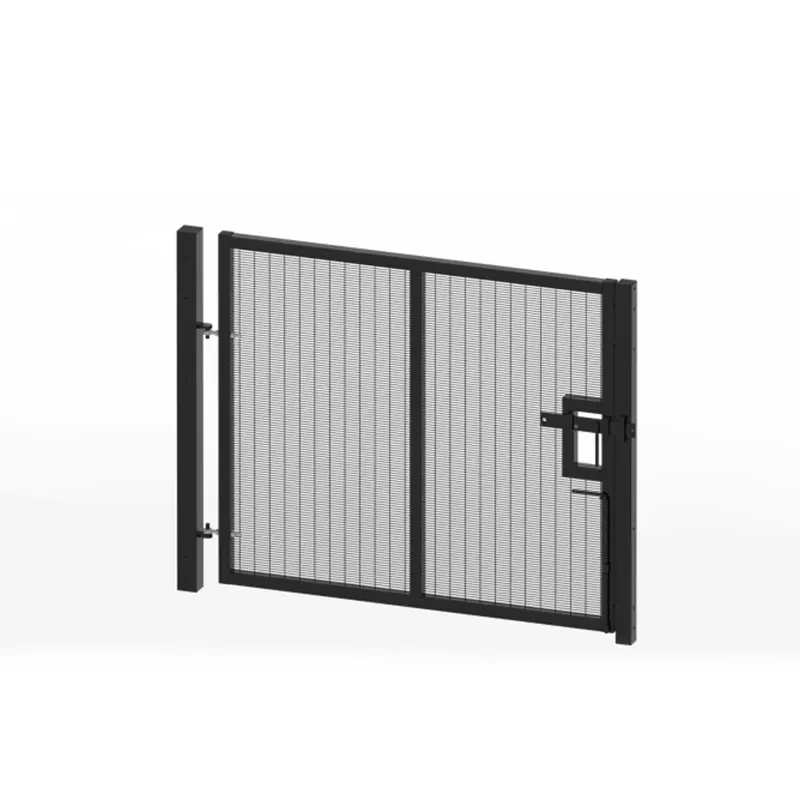

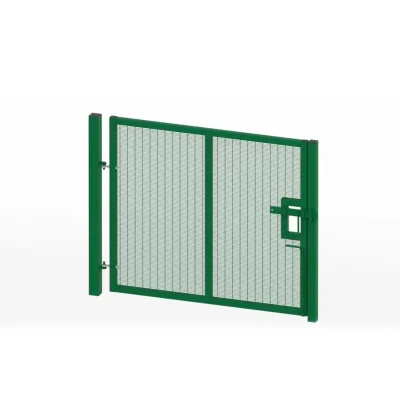

Sinotop Fence’s 358 Fence Gate offers robust vehicle access control with high-security features and anti-climb design, making it perfect for commercial properties, airports, and high-risk areas. Standing at a height of 2.4 meters and a width of 2.0 meters, this gate effectively balances visibility with intrusion prevention. It uses a 4 mm steel wire mesh with gaps measuring 12.7 mm by 76 mm.
Designed for adaptability, the gate can swing at angles of 90° or 180° and is suitable for various ground conditions. You can opt for bolt-down posts for concrete surfaces or dig-in posts set in Postfix cement for softer ground. The gate’s structural integrity is reinforced by a 100×100 mm hinge post and an 80×80 mm catch post. Integrated hardware, including fence posts, drop bolts, and sliding latch bolts.
With the backing of Sinotop Fence’s expertise in high-security solutions, every component is subjected to thorough testing. Whether protecting logistics centers, industrial facilities, or sensitive infrastructures, this gate guarantees long-lasting performance where security and operational efficiency meet.
Product Specifications
| Gate Width |
Leaf Type |
90 Degree Opening |
180 Degree opening |
| Between Posts |
Overall Posts |
Between Posts |
Overall Posts |
| 1200mm |
S/L |
1265mm |
1425mm |
1205mm |
1365mm |
| 3000mm |
D/L |
3120mm |
3280mm |
3000mm |
3160mm |
| 4000mm |
D/L |
4120mm |
4320mm |
4000mm |
4200mm |
| 5000mm |
D/L |
5120mm |
5420mm |
5000mm |
5300mm |
| 6000mm |
D/L |
6120mm |
6420mm |
6000mm |
6300mm |
| 7000mm |
D/L |
7150mm |
7510mm |
7020mm |
7380mm |
| 8000mm |
D/L |
8150mm |
8510mm |
8020mm |
8380mm |
| 9000mm |
D/L |
9150mm |
9550mm |
9020mm |
9420mm |
| 10000mm |
D/L |
10150mm |
10550mm |
10020mm |
10420mm |
| Gate Hanging Side |
100 x 100mm Hinge Post, 80 x 80mm Catch Post |
| Thickness of Wires |
4mm |
| PPC Colors |
Available in Green, Black, Blue, Red, Grey, & Brown – Other custom RAL colours are also available |
Product Advantages

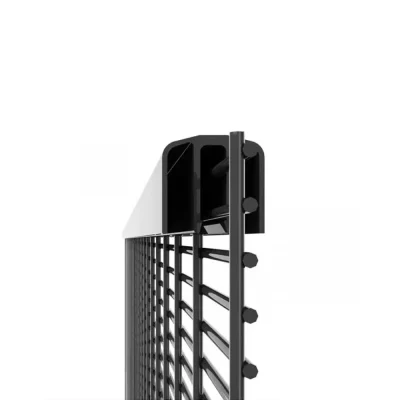

Mesh Construction
The gate features a robust mesh design that is both anti-cut and anti-climb. The strength and rigidity of the wires ensure that the mesh is resilient against vandalism and damage, providing excellent stability.
Polyester Powder Coating
This coating gives the gate a smooth and visually appealing finish while also protecting it from general wear and the effects of weathering.
Ground Compatibility
The gate can be installed on various ground types. In the customization section, you can choose between Bolt Down Posts for hard surfaces or Dig-In Posts for softer ground, which should be set in place using Postfix cement.
High-Security
This high-security gate is designed for safety and durability, ensuring long-lasting performance.
358 Fence Gate Related Accessories
 |
 |
 |

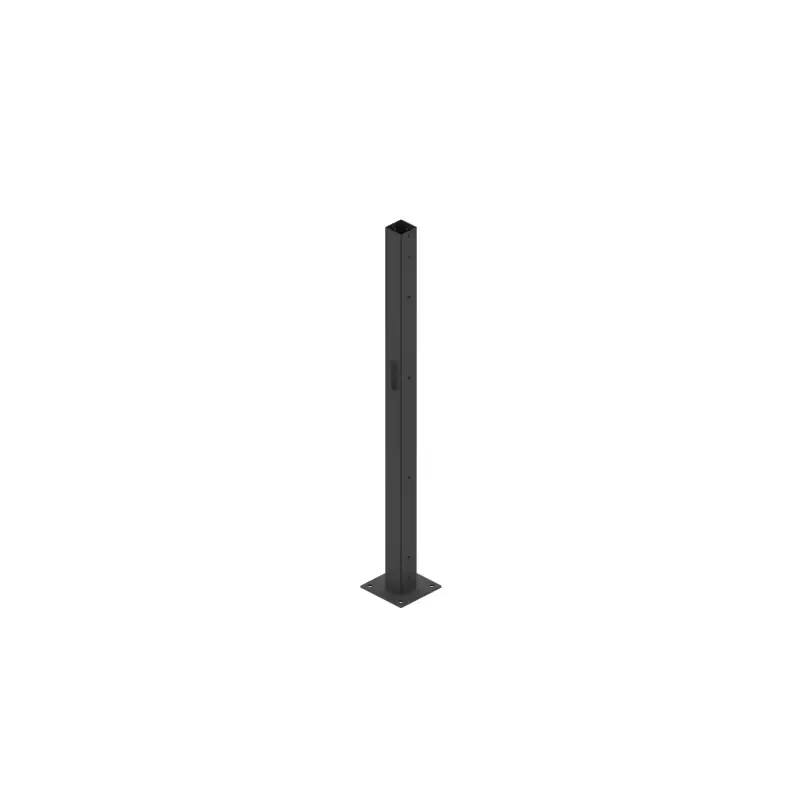

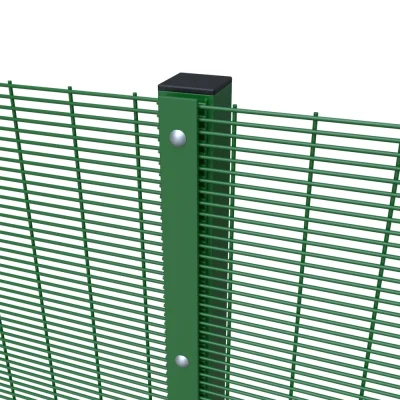

| 358 Mesh Fence Post |

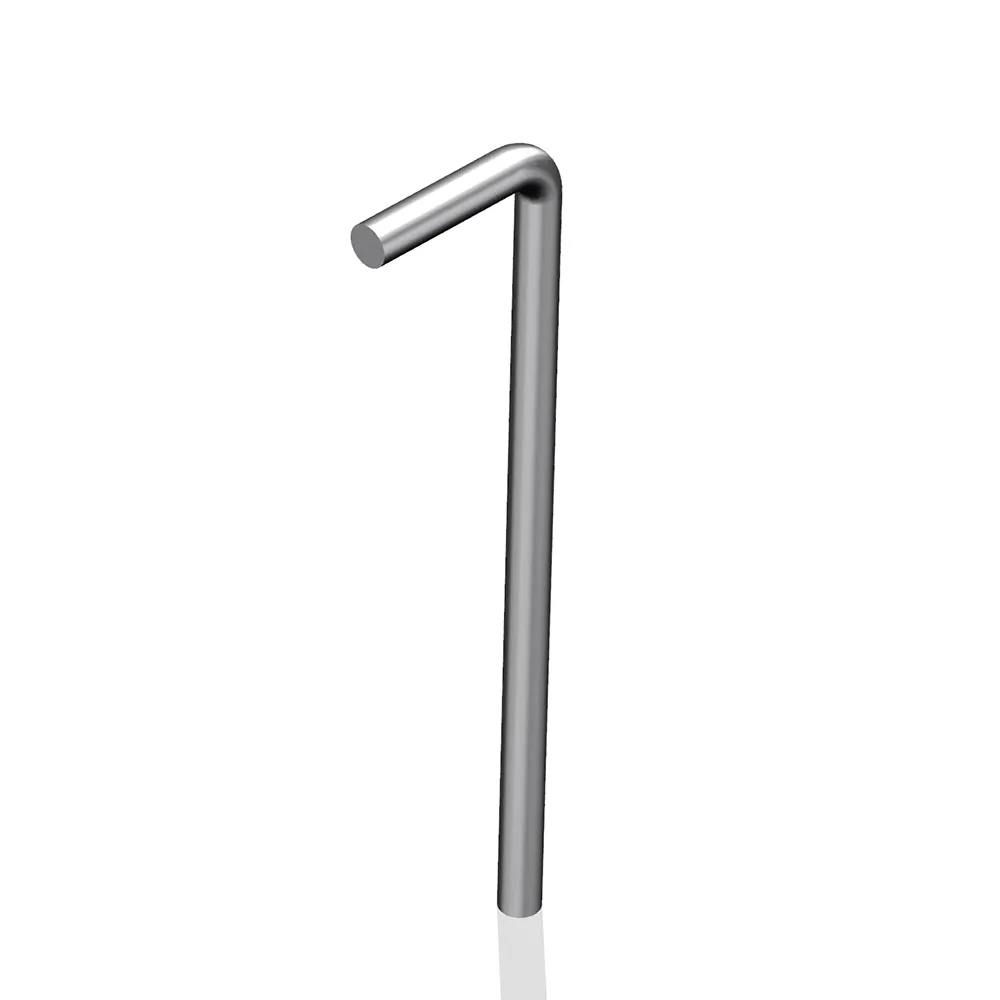

Drop Bolt |

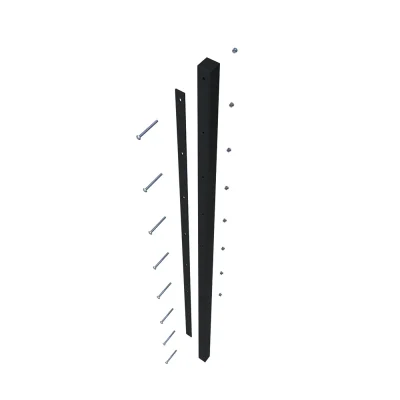

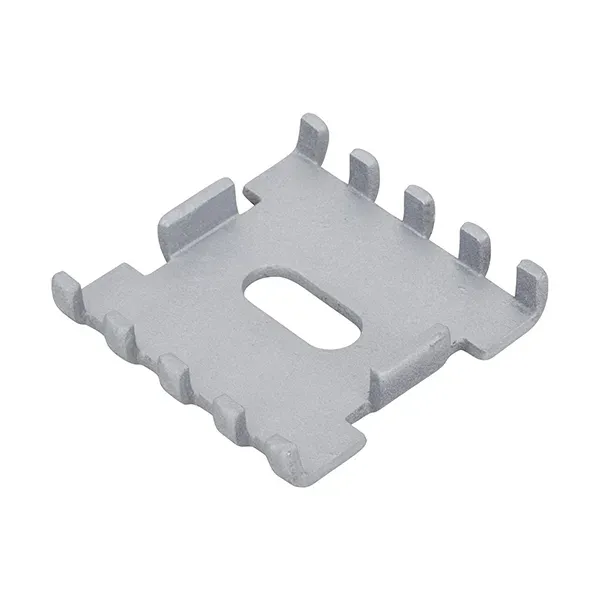

358 Mesh Clips |

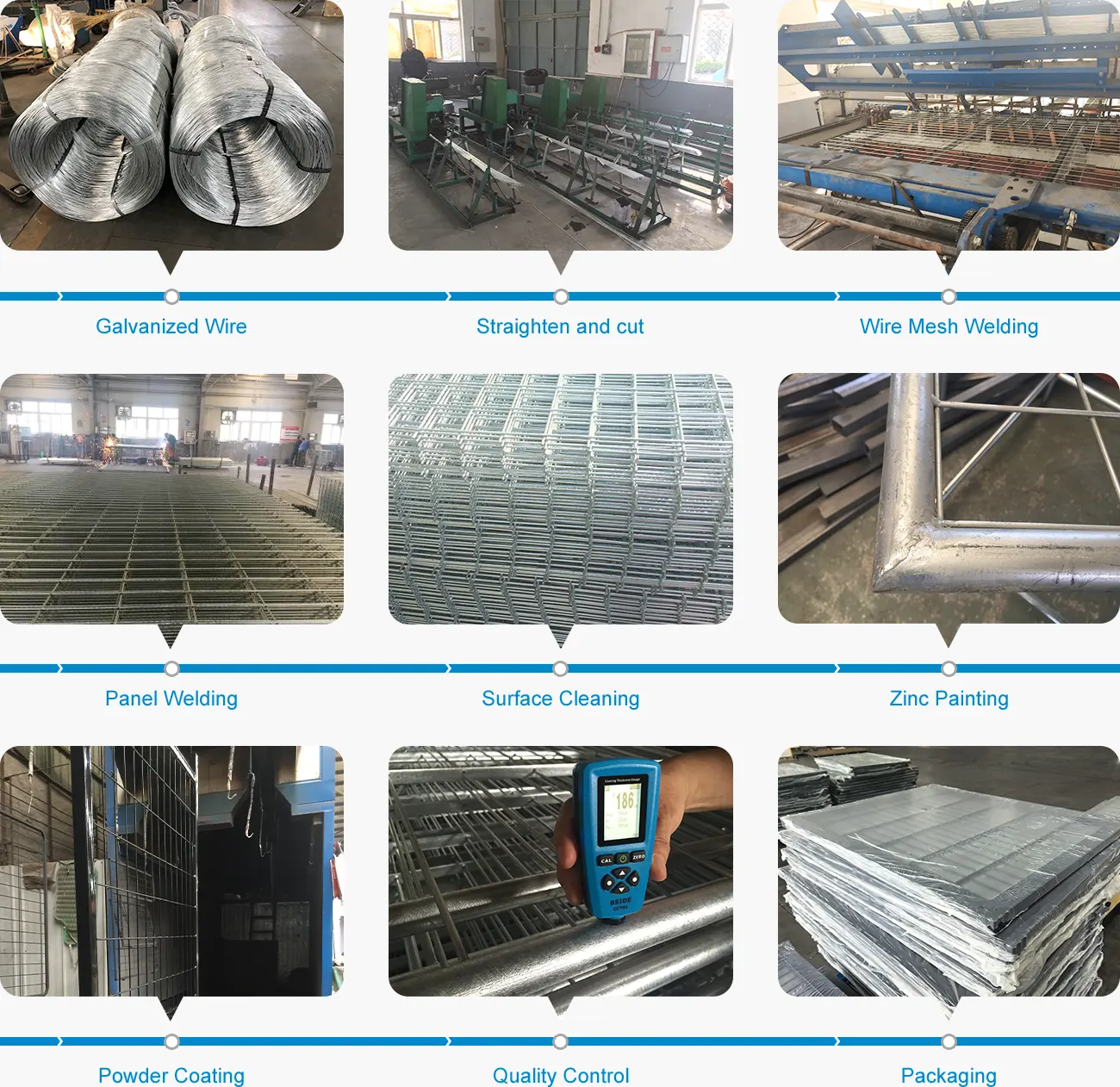

358 Mesh Gate Production Process
Galvanized Wire
Use galvanized steel wire that meets the standards to ensure that the material is of high quality and meets the design requirements.
Straighten and Cut
Straighten the galvanized steel wire, remove the bends and deformations, and then cut it according to size to prepare for the next step of production.
Wire Mesh Welding
Weld the cut steel wire horizontally and vertically according to the designed grid to form a mesh structure. Ensure that the welds are firm and the mesh is flat.
Panel Welding
Fix the prepared wire mesh to the frame of the door and weld the side or frame to ensure that the structure is firm and beautiful.
Surface Cleaning
Remove the grease, impurities during the welding process through chemical cleaning or mechanical cleaning to prepare for subsequent protective treatment.
Zinc Painting
The entire product body forms a uniform and compact zinc layer to enhance corrosion resistance.
Powder Coating
Powder Coating provides a rich color selection for the product, while increasing the anti-corrosion and aesthetic effects.
Quality Control
Check the welding quality, uniformity of the galvanized layer, and coating performance to meet the quality requirements.
Packaging
Use protective materials for packaging, prepare for shipment, and ensure that the product is intact during transportation.

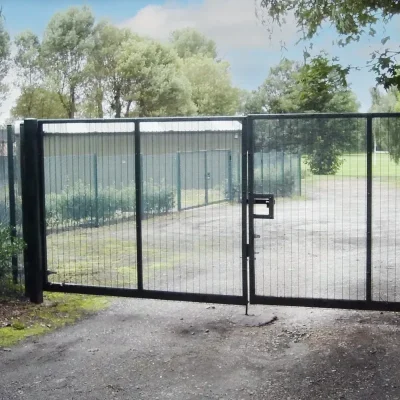

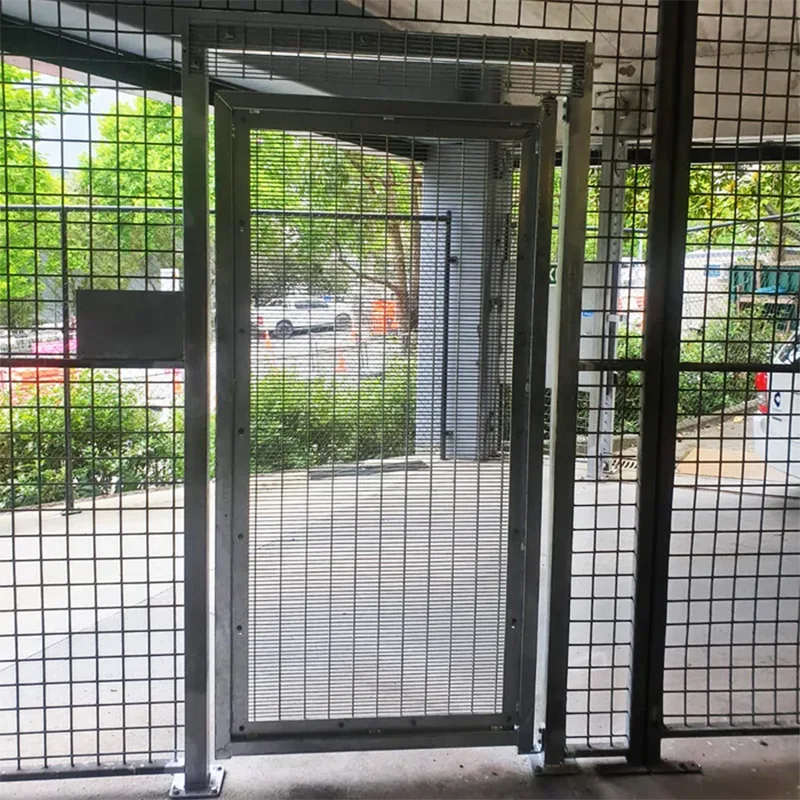

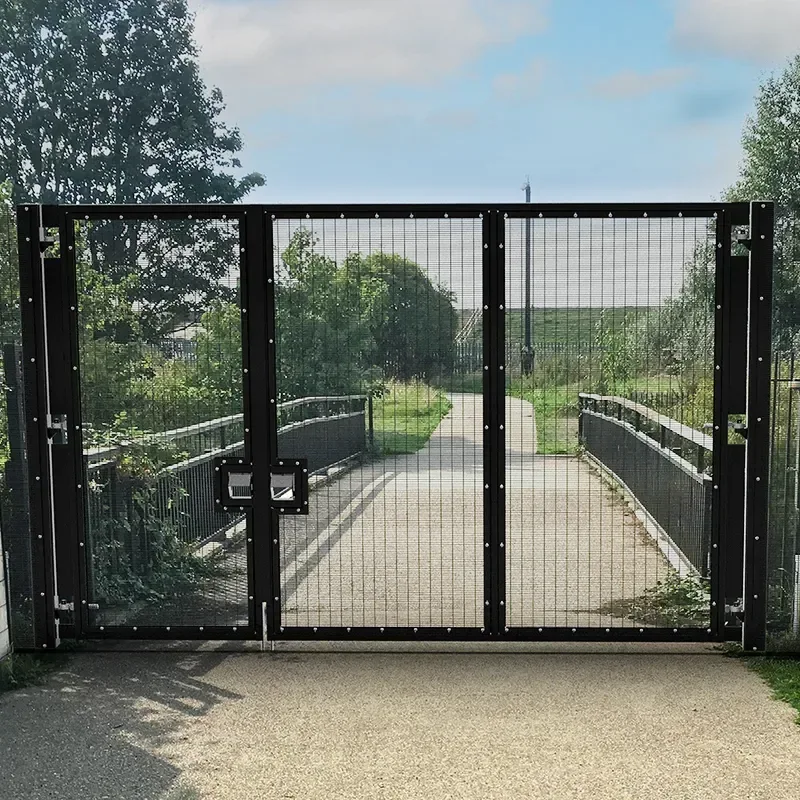

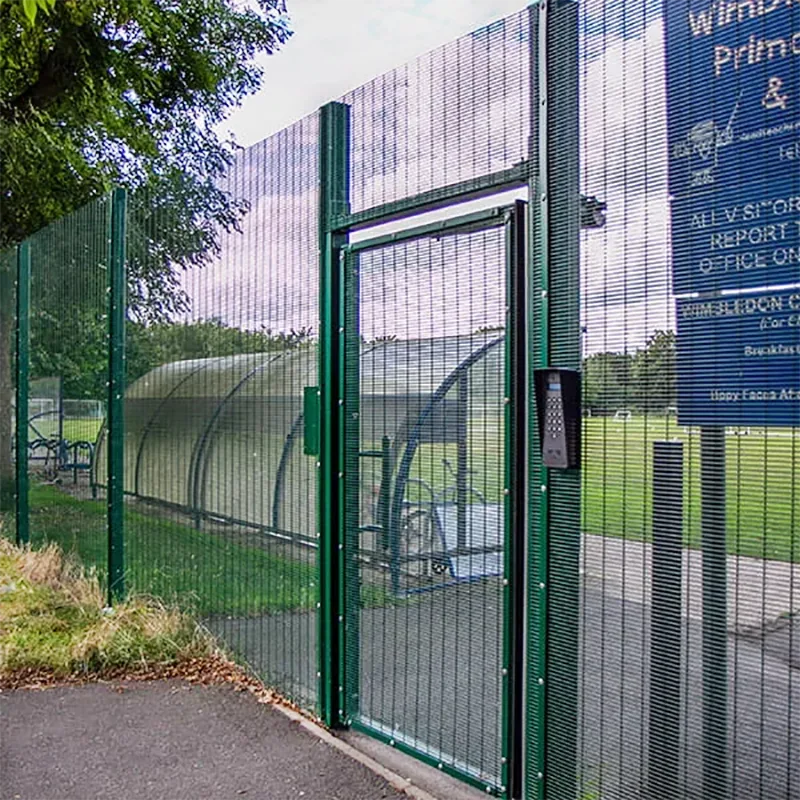

358 Mesh Gate Applications
Sinotop Fence’s 358 Fence Gate is engineered for high-security perimeters requiring controlled vehicle access, combining anti-climb mesh design with clear visibility for surveillance. Its robust construction and adaptable installation suit diverse environments, from industrial zones to sensitive infrastructures.
- Airports & Transportation Hubs – Secure vehicle entry points for restricted areas (e.g., tarmacs, cargo zones) with 2.4m height deterring unauthorized access.
- Prisons & Detention Facilities – Tamper-resistant mesh prevents climbing or cutting, paired with a 180° swing for emergency vehicle access.
- Industrial Plants – Forklift-friendly 2.0m single-leaf gates streamline logistics in warehouses or manufacturing sites.
- Data Centers & Utilities – High-visibility mesh allows camera monitoring while blocking physical intrusions.
- Commercial Complexes – Custom PPC colors (RAL options) blend security with architectural aesthetics in retail or office parks.
- Construction Sites – Bolt-down or dig-in posts adapt to concrete or soft ground, ensuring stability in temporary setups.
- Border Checkpoints – Reinforced 4mm wire mesh withstands forced entry attempts at high-risk entry/exit points.
- Energy Facilities – Corrosion-resistant coating protects gates in harsh environments (e.g., oil refineries, power plants).

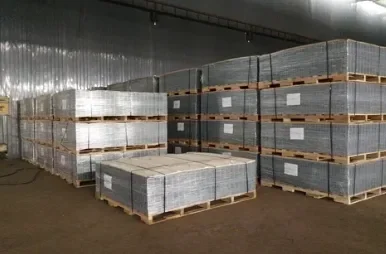

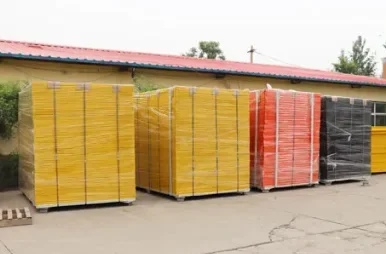

358 Fence Gate Packaging
- Our 358 fence gate is fully sealed with plastic film and transported on wooden pallets, which effectively isolates moisture and corrosive media.
- Each packaging unit is fixed to the pallet with high-strength special tape, so it can ensure zero displacement risk during transportation.
- Anti-collision sponge pads are installed at the bottom of the pallet, and metal edge guards (1.5 mm galvanized steel plate) at the four corners.
- It can withstand multiple loading and unloading impacts by forklifts.
