Sinotop Fence’s temporary chain-link fence gates are designed specifically for temporary chain-link fencing, with a width slightly smaller than the opening, facilitating the installation of gate hardware. Each gate is infilled with cyclone mesh and undergoes the same rigorous testing and quality control as our temporary chain-link fence panels, fence feet, and fence clamps.
These gates are available in single- and double-leaf designs, with opening sizes ranging from 4 inches to 144 inches and standard heights up to 6 feet. We also offer vehicle-specific models, such as 6 feet by 12 feet (actual dimensions: 5.79 feet by 9.58 feet). For enhanced structural integrity, our gates feature fully welded frames and are available in custom tubular or angled styles.
Steel wire gauges are also customizable, ranging from 9 to 12 gauge, with mesh sizes ranging from 2 inches to 2.75 inches. The modular steel frame has an outside diameter of 1.25 inches to 1.66 inches. The pre-galvanized finish ensures quick on-site assembly while balancing strength and portability.
Our team has decades of experience providing custom solutions. We can customize gates with hot-dip or pre-galvanized finishes, specific site dimensions, and accessories. Whether you need to protect a construction site, open warehouse, or event perimeter, our gates provide a low-maintenance, high-security barrier designed for rapid deployment and long-lasting reliability.

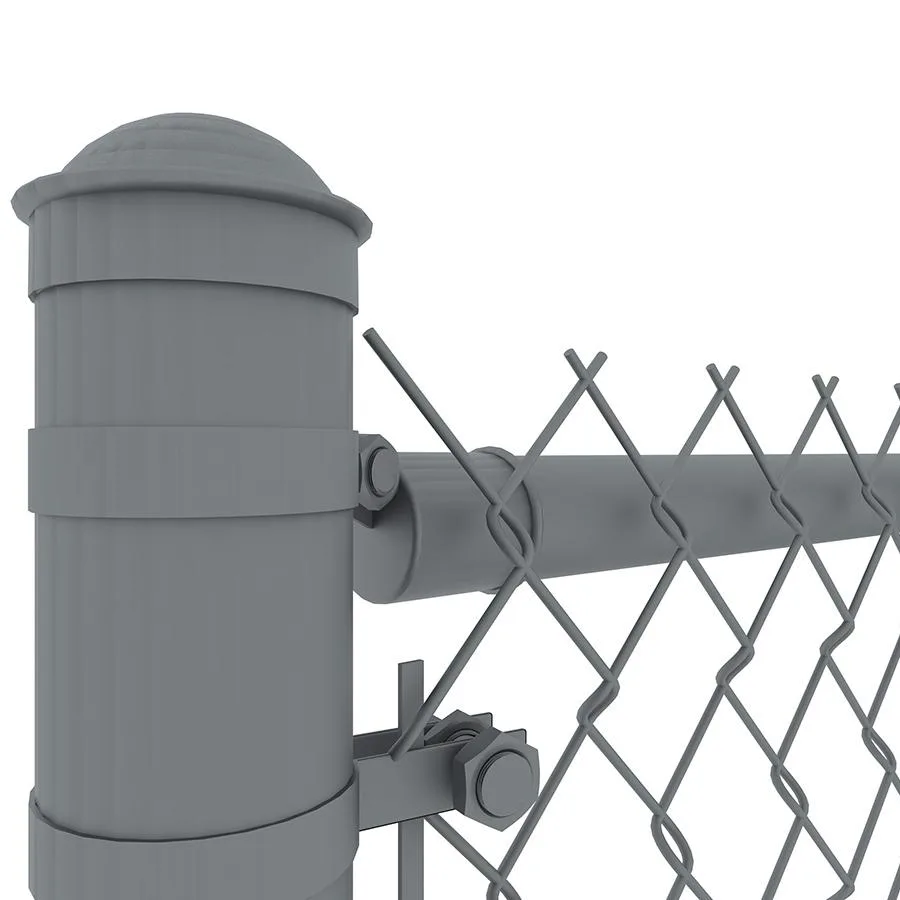

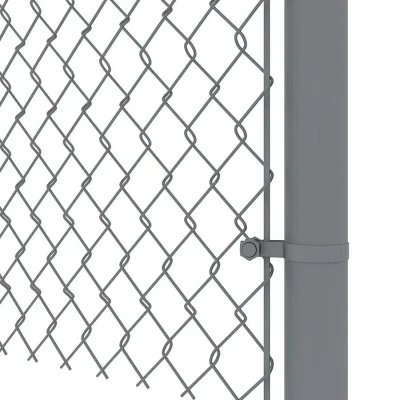

Temporary Chain Link Fence Detail
- Unrivaled Strength: Fully welded frames (tubular or bent-corner options) ensure exceptional structural integrity. All joints are expertly welded and protected with a zinc coating to prevent corrosion.
- Customizable Wire Gauge: Choose from a range of wire diameters (typically 9-12 ga) for optimal strength and security.
- Optimized Mesh Openings: Mesh openings ranging from 2″to 2.75″provide a balance of security and visibility.
- Maximum Durability: Constructed from hot-dip galvanized steel for superior resistance to rust and corrosion.
Temporary Chain Link Fence Specifications
| Material |
Steel pipe, chain link mesh |
| Double swing leaf gate dimensions |
| Common dimensions (H × W) |
3.5′ × 12′ |
4′ × 10′ |
4′ × 12′ |
5′ × 10′ |
6′ × 10′ |
6′ × 12′ |
| Actual dimensions (H × W) |
3.5′ × 11.5′ |
4′ × 9.5′ |
4′ × 11.5 |
5′ × 9.5′ |
5.79′ × 9.58′ |
6′ × 11.5′ |
| Fits Min Opening |
12″ |
10″ |
12″ |
10″ |
10″ |
12″ |
| Fits Max Opening |
144″ |
120″ |
144″ |
120″ |
120″ |
144″ |
| Single swing leaf gate dimensions |
| Common dimensions (H × W) |
4′ × 4′ |
5′ × 3.5′ |
5′ × 4′ |
5′ × 6′ |
6′ × 4′ |
6′ × 6′ |
| Actual dimensions (H × W) |
4′ × 3.66′ |
5′ × 3.16′ |
5′ × 3.66′ |
5′ × 6′ |
6′ × 3.66′ |
6′ × 6′ |
| Fits Min Opening |
4″ |
3.5″ |
4″ |
24″ |
4″ |
24″ |
| Fits Max Opening |
48″ |
42″ |
48″ |
72” |
48″ |
72″ |
| Wire diameter |
9 ga, 10.5 ga, 11 ga, 11.5 ga, 12 ga optional. |
| Mesh opening |
2″, 2.25″, 2.375″, 2.4″, 2.75″optional. |
| Frame O.D. |
1.25″, 1.315″, 1.5″, 1.6″, 1.66″optional. |
| Frame wall thickness |
0.06″ |
| Gate post (O.D. × H) |
2.36″× 2.36″‘ × 0.06″ |
| Post height |
9.2′ |
| Gate construction |
360° full-welded tubular frame and bent frame. |
| Fixed or adjustable |
Fixed |
| Surface treatment |
Hot-dipped galvanized.
Pre-galvanized.
|
| Attached way |
Mesh wrapped around the flat bar, then connect with clamps.
Galvanized wire wrapped with steel frame in a rather tension way.
|
Temporary Chain Link Fence Gates Advantages

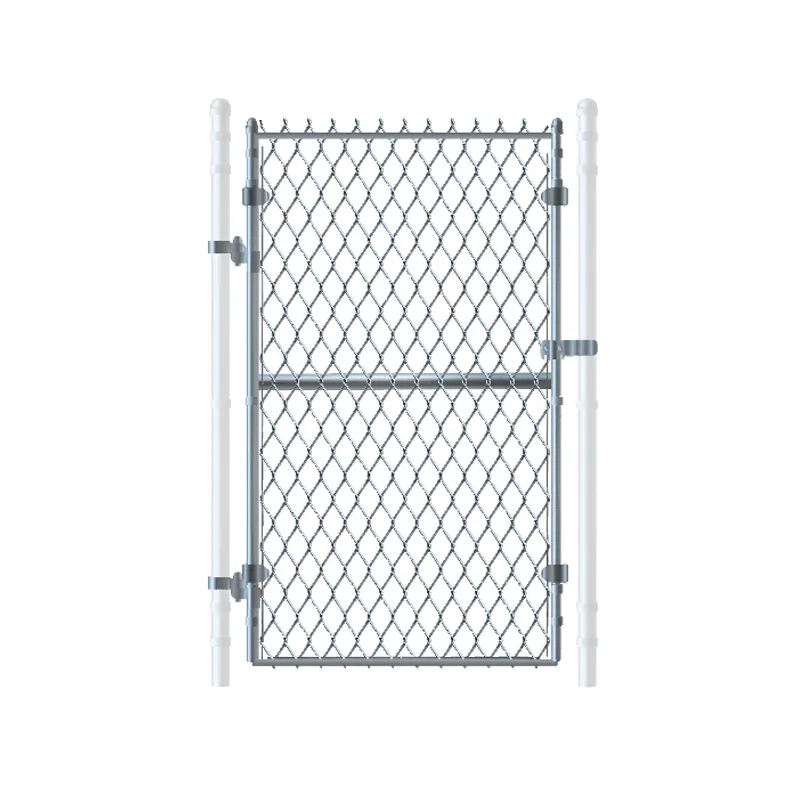

- Two styles of frames are optional.
- 360° full-welded tubular frame: 360° full manual welding to ensure a firm gate structure. This will create 4 square corners there.
- Bent frame: Constructed from a single piece of steel tube with a diameter of 1.375″, creating 4 bent corners.
- Hand-craft techniques of manufacture: Gate panels are filled with galvanized chain link mesh and wrapped around the frame tube with tension bars and tension bands by hand in a rather tense way.
- Another option sturdy, attached way: Available flat bar, then use clamps to connect the infill panel and the frame.
- There are three styles for your choice: Strong corrosion surface treatment; Hot-dipped galvanized. To ensure at least 42 microns of thickness of zinc coating. Service life can reach more than ten years; Pre-galvanized. 28 microns or at least 14 microns thickness of zinc coating is anti-corrosion and can satisfy the normal applications.

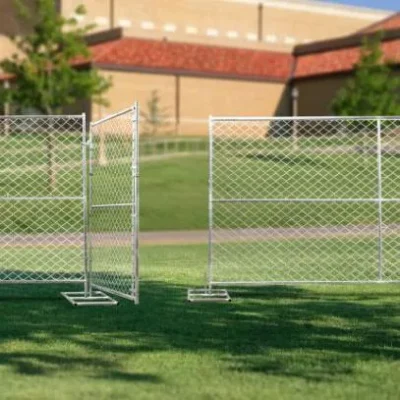

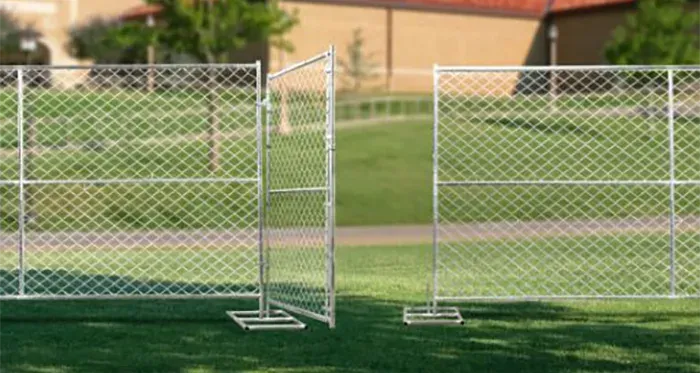

Temporary Chain Link Fence Gates Application
- Construction Site Security: Secures construction zones, ensuring worker safety and controlled access.
- Event Perimeter Control: Manages crowds and maintains order at sporting events, exhibitions, and temporary gatherings.
- Hazardous Area Isolation: Provides temporary safety barriers in warehouses, industrial plants, and chemical facilities, preventing unauthorized access to dangerous areas.
- Market & Fair Organization: Divides and organizes temporary markets and trade fairs, improving site management and preventing congestion.
- Roadwork Safety: Creates temporary barriers during road maintenance and bridge construction, ensuring safe passage for pedestrians and vehicles.

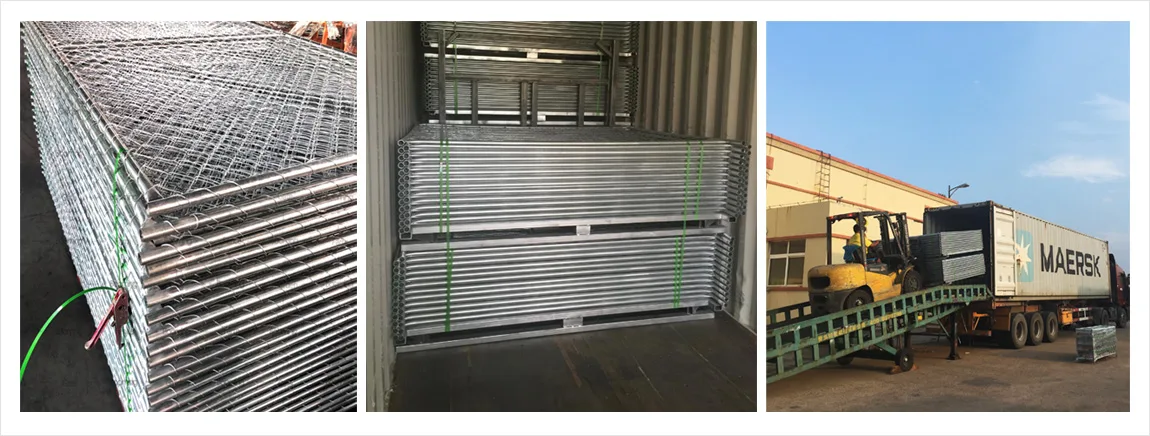

Temporary Chain Link Fence Gate Packaging
- Packaging is very important for temporary chain link fence gates.
- We use strapping + pallet packaging, which is very strong and ensures safe transportation in logistics.
- At the same time, our customers can easily unload the products with a forklift.
- If you have other needs, we will pack them strictly according to your requirements.
- We use sea transportation, which is convenient, fast, and stable.
