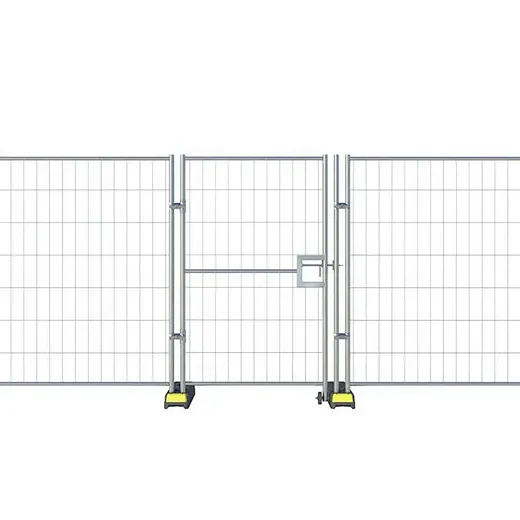

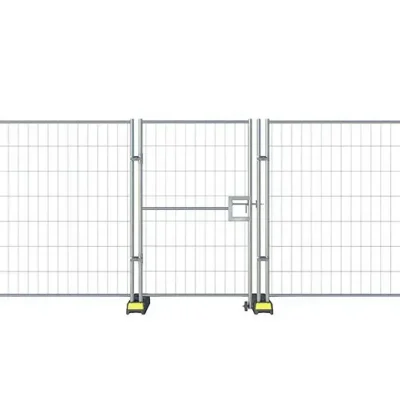

Sinotop Fence’s Weld Mesh Temporary Fence Gate provides secure and customizable access points for pedestrian and vehicle traffic within temporary barrier systems. Designed for seamless integration with temporary fencing, this gate boasts robust steel construction and adaptable configurations to meet changing site requirements.
Our wire mesh temporary fence gates come in single or double-swing leaf designs, with widths ranging from 3.28′ to 4.27′ and a standard height of 6.9′. For vehicle access, we offer models measuring 6.9’×4.9′. To enhance durability, Sinotop Fence employs fully hand-welded joints and offers optional wire diameters of 0.16″ or 0.24″, with mesh openings available from 2″×4″ to 2.95″×6″.

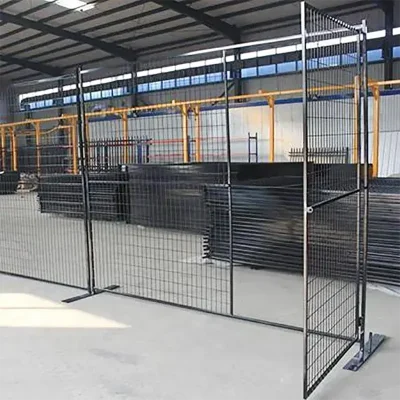

The frame sizes of our weld mesh temporary fence gates range from 1.18″×1.18″ to 1.58″×1.58″, allowing for quick on-site assembly. Pre-galvanized steel and powder-coating options enhance both functionality and aesthetics. As a trusted fence gate manufacturer, we ensure that each gate is hot-dip galvanized (42 microns) for exceptional corrosion resistance, guaranteeing durability even in harsh environments.
With decades of industry experience, our team delivers reliable fence gate solutions tailored to your project needs. Whether you require corrosion-resistant finishes, customized dimensions, or expert advice on hardware (hinges, latches, rubber wheels), we provide a low-maintenance, high-strength access gate that combines rapid deployment with steadfast security.
| Material | Steel pipe, steel wire. |
| Gate Width | 3.28′ – 4.27′ |
| Gate Height | 6.9′ |
| Vehicle Gate Dimensions (H × W) | 6.9′ × 4.9′ |
| Wire Diameter | 0.16″, 0.24″optional |
| Mesh Opening | 2″×4″, 2.36″×6″, 2.95″×6″optional. |
| Frame O.D. | 1.18″×1.18″×0.08″, 1.58″×1.58″×0.08″optional. |
| Frame TH | 0.08″– 1″ |
| Middle Horizontal Pipe O.D. | 1″×1″×0.08″ |
| Welded Points | Fully Hand Welded |
| Finish | Hot-dip Galvanized 42 Microns |
 |
 |
 |
| Temporary Fence Base | Temporary Fence Clamp | Temporary Fence Stay |
We exclusively use galvanized pipes and galvanized wire that meet industry standards. We control the material size tolerance within ±0.5 millimeters, ensuring there are no cracks, oxidation, or burrs.
We cut galvanized pipes to the lengths specified in the design drawings using automated CNC cutting equipment. We maintain a strict cutting length tolerance of ±1mm. Additionally, we automatically deburr the cut ends to eliminate safety hazards for subsequent processing.
We utilize high-precision hydraulic presses to flatten both ends of the cut pipes. We control the flatness tolerance within 0.2mm, ensuring a tight, gap-free fit with on-site connecting components to meet assembly accuracy requirements.
Firstly, the galvanized steel wire is straightened by a straightening equipment to control the straightness error within 1 millimeter per meter, eliminating the bending deformation. Then, the grid panel is formed by using an automatic CNC resistance welding equipment at one time. The size tolerance of the grid panel is within ±2 millimeters.
The pre-cut frame components are positioned by custom fixtures. All joints are welded manually in accordance with the welding specifications to ensure that the frame has sufficient strength to resist long-term external impacts.
All surface welding slag and impurities are removed through sandblasting to meet the cleaning standards. The damaged zinc layer at the welding position will be repaired with a special zinc filler, with the repair coating thickness reaching ≥35 micrometers to ensure the overall product has consistent anti-corrosion performance.
For products that require powder coating or additional anti-corrosion protection, we apply zinc-rich epoxy primer through an automated airless spraying method, with the dry film thickness controlled within 60-80 micrometers, meeting the requirements of zinc-rich primer in industry standards, to further enhance corrosion resistance and improve the adhesion of the topcoat.
All finished products must undergo inspection. The full-size deviation should be within ±3 millimeters, and the verticality error should be ≤ 2 millimeters per meter. There should be no welding defects, coating missing or deformation. After the salt spray test, there should be no rust or coating detachment.

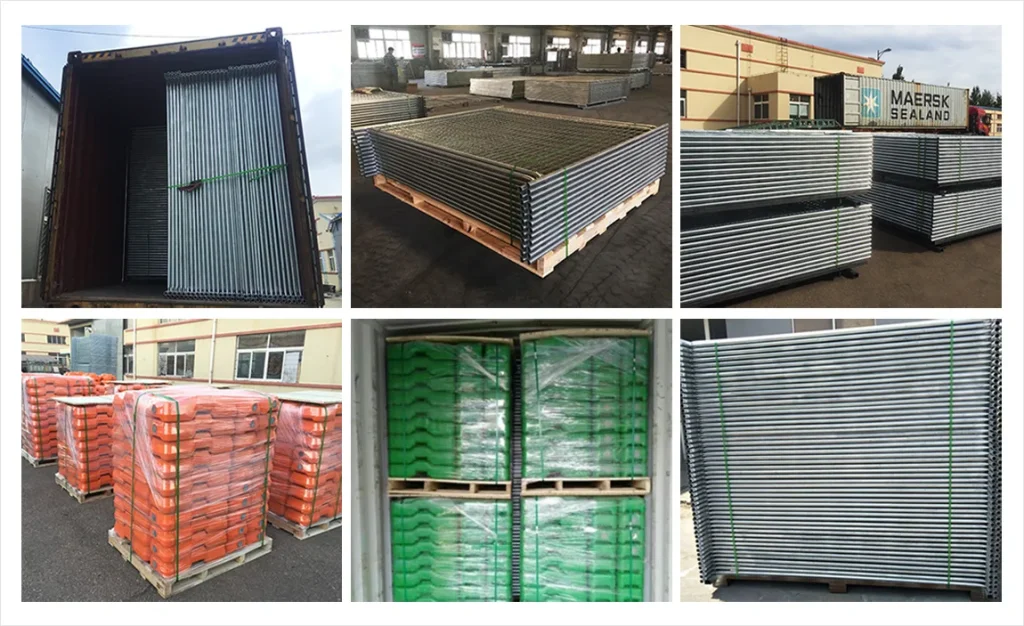

Packages completed in accordance with international transportation standards will be tied up with high-strength straps, and additional reinforcement will be carried out inside the container to prevent movement and thereby reduce the damage rate during long-distance transportation.
For small orders, sample orders, or air shipments, T/T in advance (telegraphic transfer-bank order). We can also offer preferential and flexible payment terms to our customers to establish a win-win partnership. Other payments: L/C, D/A, D/P, MoneyGram, Paypal, or Escrow. There can be minor variations in different places.
We offer the following post-purchase services following your payment:
We have the best after-sales staff around. Please Contact Us as soon as possible if you experience any after-sale issues. We’ll get back to you as soon as we can with a satisfying answer.
