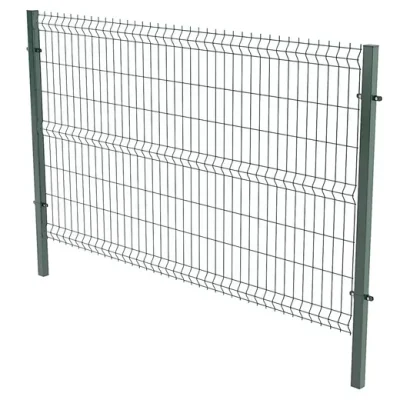

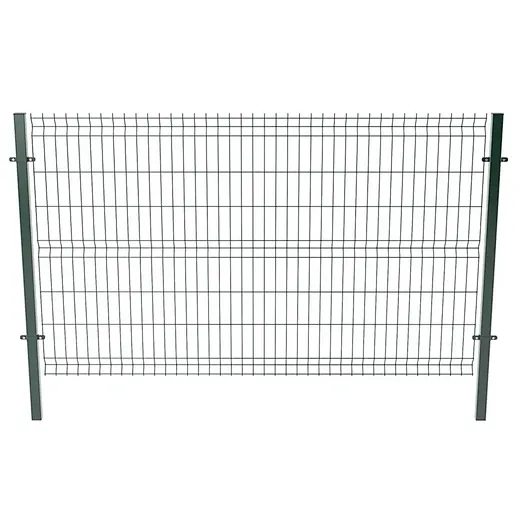

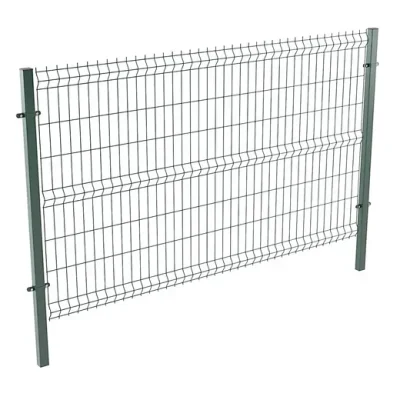

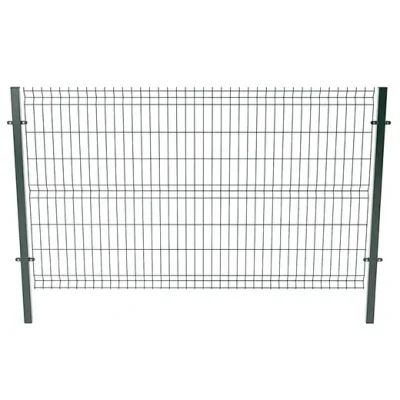

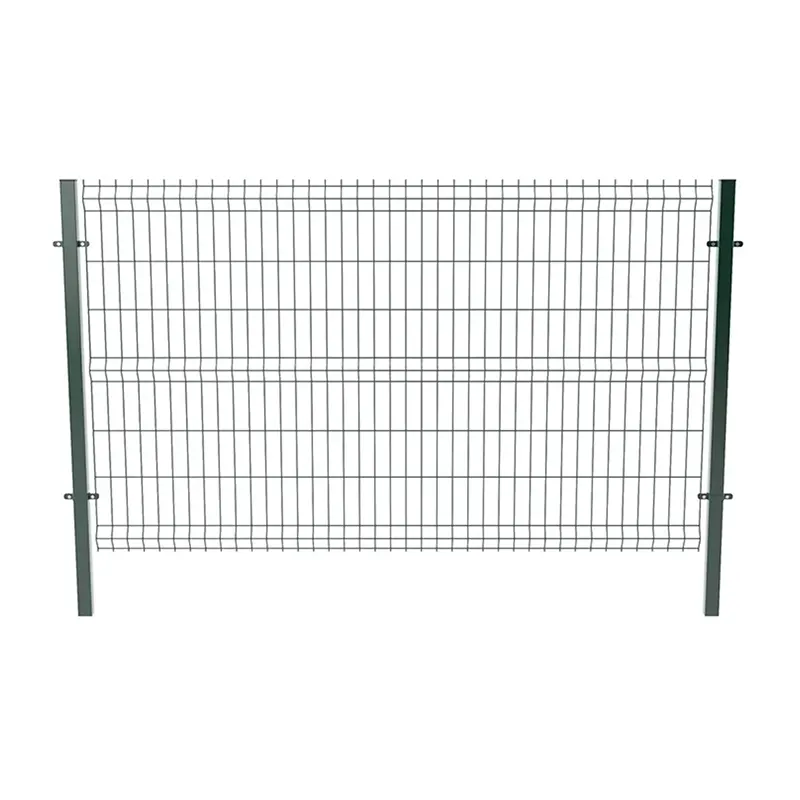

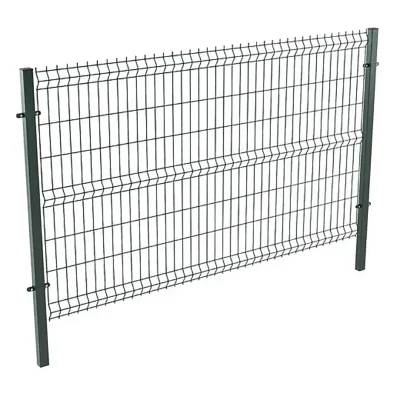

3D Fence Panel, 3D Curved Security Fence

• Structural Reinforcement: Interlocked curvature patterns distribute stress loads evenly, enhancing impact resistance and wind load capacity by up to 35% compared to conventional flat-panel fencing.
• Adaptive Aesthetics: Multi-plane geometric configurations create visual depth while maintaining 82%+ open air flow rate, ideal for perimeter security requiring both visibility and ventilation.

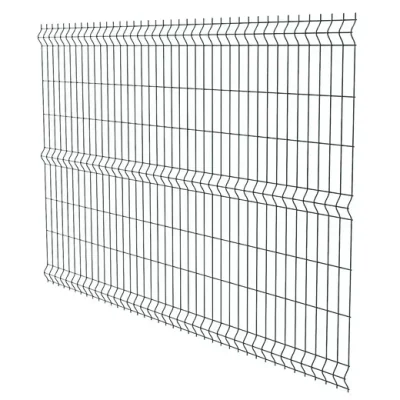

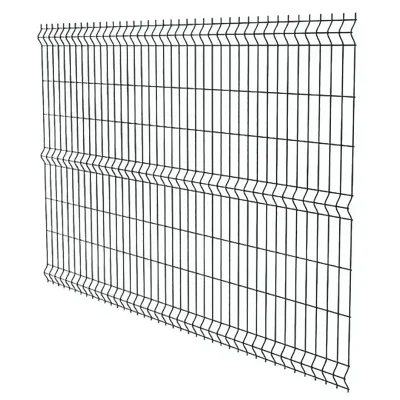

3D Fence Details

• Wire Diameter: Steel wires of different diameters, can be selected according to needs.
• Mesh Size: A variety of mesh sizes are available to meet different safety needs.
• Surface Treatment: The thickness of the galvanized layer, the color of the powder coating, and the thickness of the PVC coating can all be customized.

3D Curved Fence Specifications

3D Mesh Fence Related Accessories

Fence Brackets	Metal Fence Post	Post Caps

3D Wire Mesh Fence Panels Production Process

Material Selection

Select high-quality steel wires that meet the requirements of strength, toughness, and corrosion resistance, such as galvanized steel wires. Conduct strict quality inspections on the diameter, surface quality and coating thickness of the steel wires to ensure the excellent performance of the raw materials.

Straighten and Cut

The rolled galvanized steel wire is processed through a high-precision automatic straightening machine, effectively eliminating its inherent bending. The straightness error is controlled within < 1 mm/m. Subsequently, it is precisely cut to the specific length using a CNC cutting device, with the cutting length tolerance typically controlled within ±1 mm.

Wire Bending

Using CNC bending equipment, galvanized steel wires are bent into the required arcs. The bending process requires the bending machine to have extremely high precision. It is necessary to precisely control the bending angle, radius and material deformation.

Grid  Welding

Using an automatic welding equipment, the cut steel wires are placed on the feeding rack of the welding machine. The machine welds the intersections of the steel wires to form a firm welding point. The full automation ensures the consistency of the grid size and welding strength.

Surface Treatment

After the welding is completed, the edges and weld points are polished to remove burrs, oil stains, and welding slag and other impurities, preparing for the subsequent coating process.

Powder Coating

Based on hot-dip galvanizing, a dense and robust powder coating with a thickness of approximately 80-120 micrometers is formed through precise spraying technology. This coating significantly enhances the corrosion resistance, UV resistance and mechanical strength of the fence.

Quality Control

Check whether the dimensions of the fence panels meet the design requirements, including length, width, height and bending angle. Confirm that the welding points are firm without any incomplete or missing welds. Check whether the coating is uniform and smooth, without bubbles, scratches or peeling.

Packaging

Wrap the fence panels with plastic film or bubble wrap to prevent scratches or damages during transportation. Stack the fence panels neatly on wooden or steel pallets and secure them with packing straps for easy loading and unloading.
Through the above optimizations, the production process has become more efficient and precise, ensuring the improvement of product quality and production efficiency.

Advantages of 3D Fence Panel

Structural Reinforcement​​

• V-profile 3D design enhances impact/wind resistance.
• Even stress distribution minimizes deformation risks.

​​Superior Durability​​

• Hot-dip galvanized steel (≥120g/㎡ zinc) or polymer coating (≥250μm).
• Passes 10,000+ hours of salt spray testing.

​​Versatile Applications​​

• Ideal for residential, industrial, infrastructure, and sports facilities.
• 82%+ airflow rate for ventilation and visibility.

​​Cost Efficiency​​

• 15-20% lower lifecycle cost vs. concrete fencing.
• Pre-assembled modules reduce installation time by 40%.

​​Customization Options​​

• Adjustable height (1-6m), mesh density (50×50mm to 150×150mm).
• Compatible with privacy inserts or anti-climb accessories.

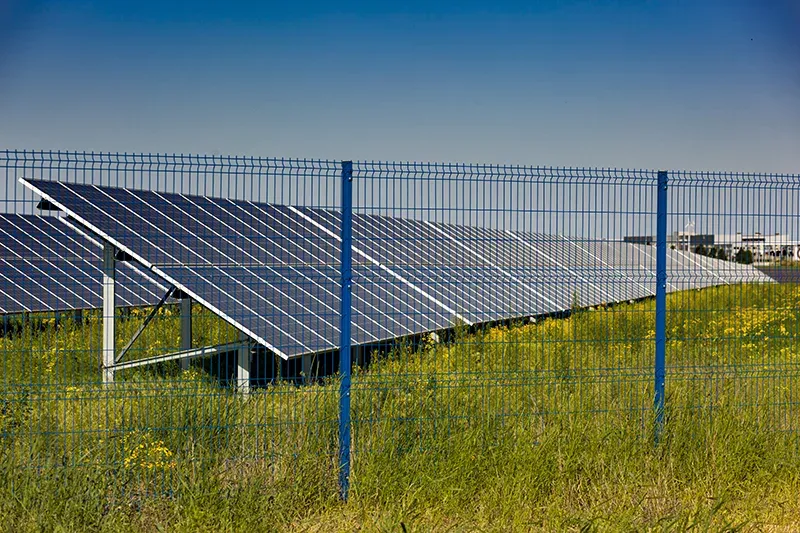

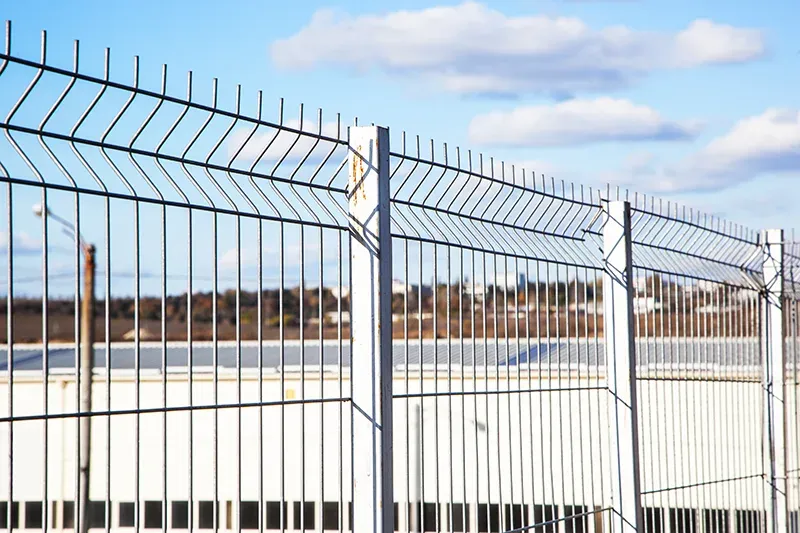

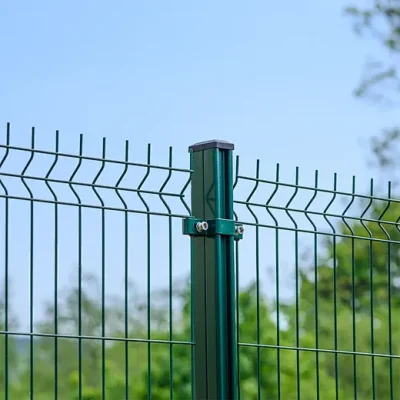

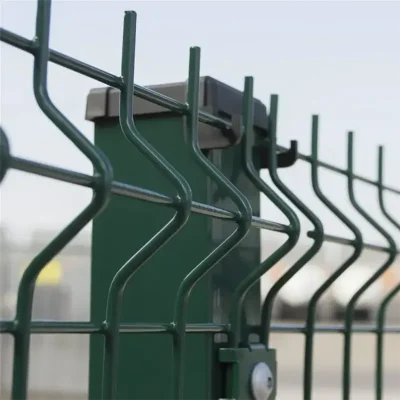

Application Scenarios of 3D Fence

These versatile fences are ideal for a variety of applications, from enclosing private properties to securing large industrial facilities.

• •
  •
• High-security industrial compounds
• Residential community perimeters
• Infrastructure protection zones
• Sports facility enclosures

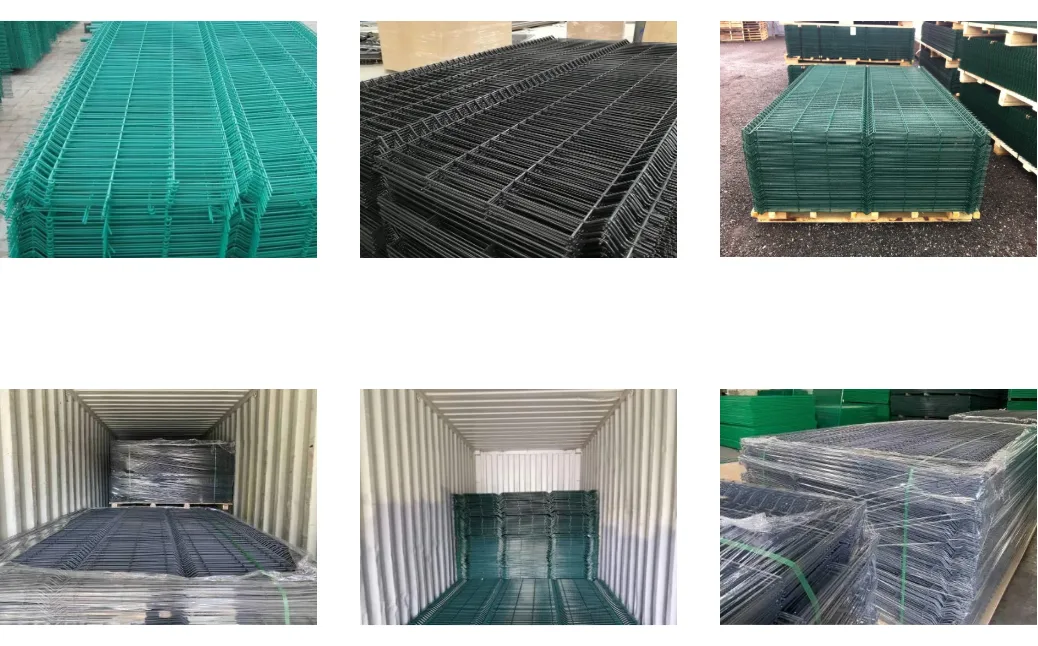

3D Curved Security Fence Shipping and Packaging

• Fence panel: plastic film / wooden case + metal/wooden pallet.
• Fence post: plastic bag + metal/wooden pallet (with rain hat installed).
• Fence accessories: plastic bag + carton box (clips & screws).
