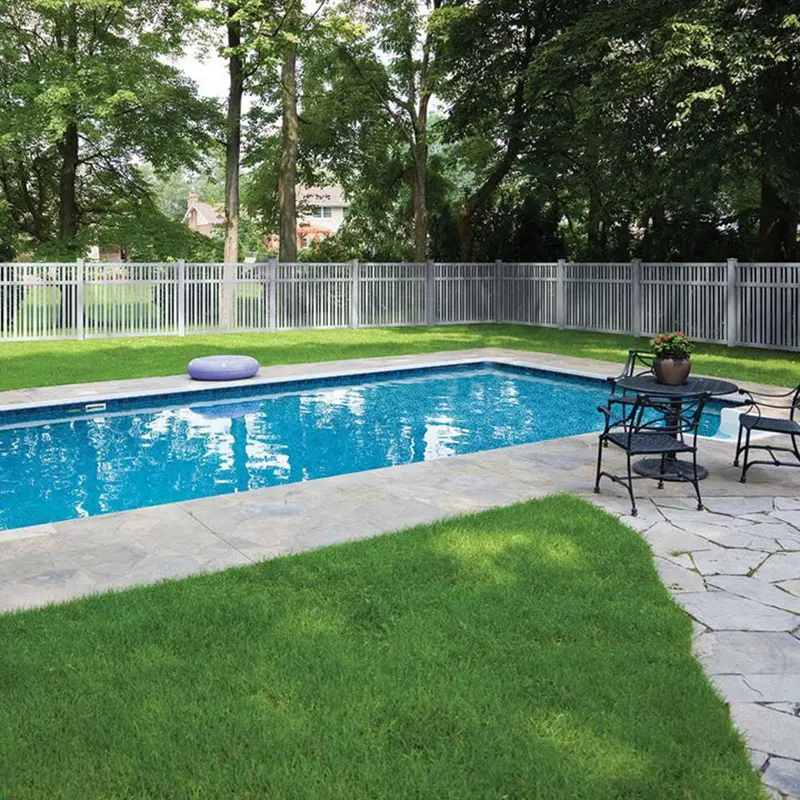

This 5ft 3 Rails Semi Privacy Vinyl Fence system is designed to provide a perfect blend of functionality and aesthetics for residential environments such as gardens and patios. Compared to 3 Rails Full Privacy PVC Fence, it offers necessary privacy while ensuring smooth airflow and ample natural light, making it an ideal fencing solution that is practical, durable, and aesthetically pleasing.
While maintaining a height comparable to full-privacy fences, its carefully designed slat spacing significantly improves air circulation and provides an unobstructed view, effectively avoiding the cramped feeling that can be associated with fully enclosed fences.
We utilize advanced extrusion molding technology to ensure that the fence panels have a dense and uniform internal structure. Compared to common 2 rail flat top vinyl privacy fences on the market, our unique 3-rail structural design greatly enhances the overall strength and stability of the fence. This reinforced design allows it to withstand strong winds and other external forces, ensuring long-term stability.
As a professional fence supplier, we offer a comprehensive range of privacy fence panels and matching accessories. In addition to standard sizes, we can also provide options in different heights, widths, styles, and custom colors to meet your specific needs and preferences, ensuring you find the perfect fence product for your particular application.
|
 |
||
| Item | Dimension(mm) | Thickness(mm) | Qty |
| Top Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Middle Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Bottom Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Picket | 38.1×22.3×1330 | 2.0 | 24 |
| Alum | 2388 | 1 | |
| Post | 127×127×2200 | 3.8 | 1 |
| PVC Posts and Post Caps are not included in each section. Please order separately. | |||
 |
 |
||
| Item | Dimension(mm) | Thickness(mm) | Qty |
| Top Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Middle Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Bottom Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Picket | 76.2×22.3×1330 | 2.0 | 22 |
| Alum | 2388 | 1 | |
| Post | 127×127×2200 | 3.8 | 1 |
| PVC Posts and Post Caps are not included in each section. Please order separately. | |||
 |
 |
||
| Item | Dimension(mm) | Thickness(mm) | Qty |
| Top Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Middle Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Bottom Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Picket | 76.2×22.3×1330 | 2.0 | 22 |
| Alum | 2388 | 1 | |
| Post | 127×127×2200 | 3.8 | 1 |
| PVC Posts and Post Caps are not included in each section. Please order separately. | |||
 |
 |
||
| Item | Dimension(mm) | Thickness(mm) | Qty |
| Top Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Middle Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Bottom Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Picket A | 76.2×22.3×1330 | 2.0 | 14 |
| Picket B | 38.1×22.3×1330 | 2.0 | 13 |
| Alum | 2388 | 1 | |
| Post | 127×127×2200 | 3.8 | 1 |
| PVC Posts and Post Caps are not included in each section. Please order separately. | |||
 |
 |
||
| Item | Dimension(mm) | Thickness(mm) | Qty |
| Top Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Middle Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Bottom Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Picket | 38.1×38.1×1330 | 2.0 | 24 |
| Alum | 2388 | 1 | |
| Post | 127×127×2200 | 3.8 | 1 |
| PVC Posts and Post Caps are not included in each section. Please order separately. | |||
 |
 |
 |
| Arbor Caps | External Flat Cap | Flat Cap |
 |
 |
 |
| Gothic Cap | Sharp Point Cap | New England Cap |
PVC resin is combined with a proprietary blend of additives in a high-shear mixer, ensuring homogeneous dispersion and optimal material properties.
The formulated PVC compound is fed into a single or twin-screw extruder, where it is plasticized and forced through a profile die. Cooling is achieved via water bath or air cooling, followed by controlled traction to maintain dimensional stability.
Extruded profiles are automatically cut to specified lengths using precision cutting equipment, ensuring consistent component dimensions.
CNC milling equipment is employed to create precise holes, slots, and other features required for assembly, adhering to strict tolerances.
Components are subjected to a multi-stage cleaning process, including degreasing and rinsing, to remove surface contaminants and ensure optimal adhesion for any subsequent coatings or treatments.
Trained technicians assemble the fence components using specialized jigs and fixtures, ensuring proper alignment and secure fastening.
Each assembled fence undergoes a comprehensive inspection, including dimensional verification, visual inspection for defects, and functional testing of hardware.
Finished fence components are carefully packaged using appropriate materials and methods to prevent damage during storage and transportation.
For small orders, sample orders, or air shipments, T/T in advance (telegraphic transfer-bank order). We can also offer preferential and flexible payment terms to our customers to establish a win-win partnership. Other payments: L/C, D/A, D/P, MoneyGram, Paypal, or Escrow. There can be minor variations in different places.
We offer the following post-purchase services following your payment:
We have the best after-sales staff around. Please Contact Us as soon as possible if you experience any after-sale issues. We’ll get back to you as soon as we can with a satisfying answer.
