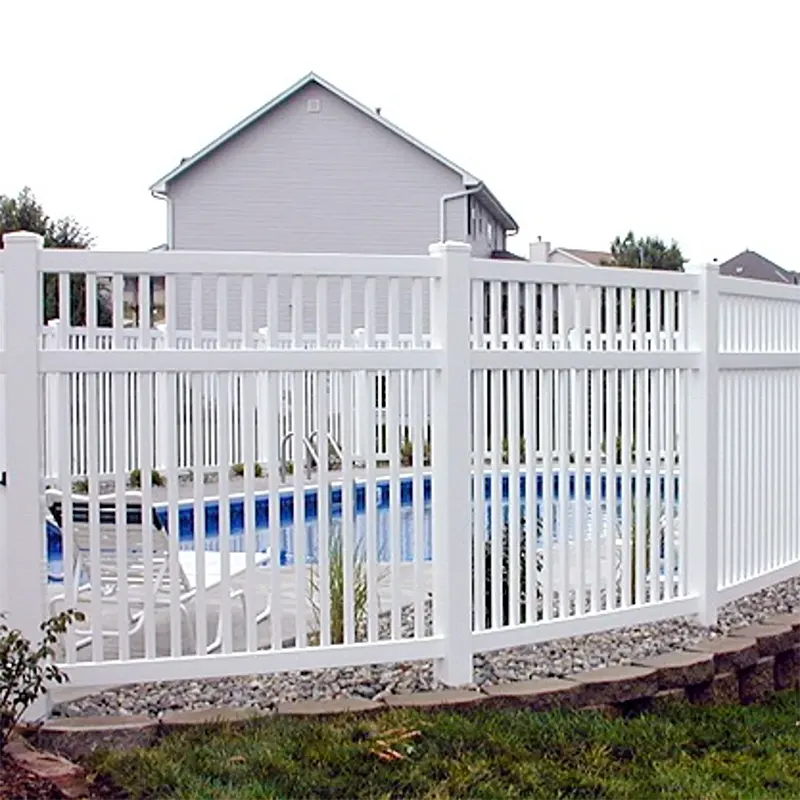

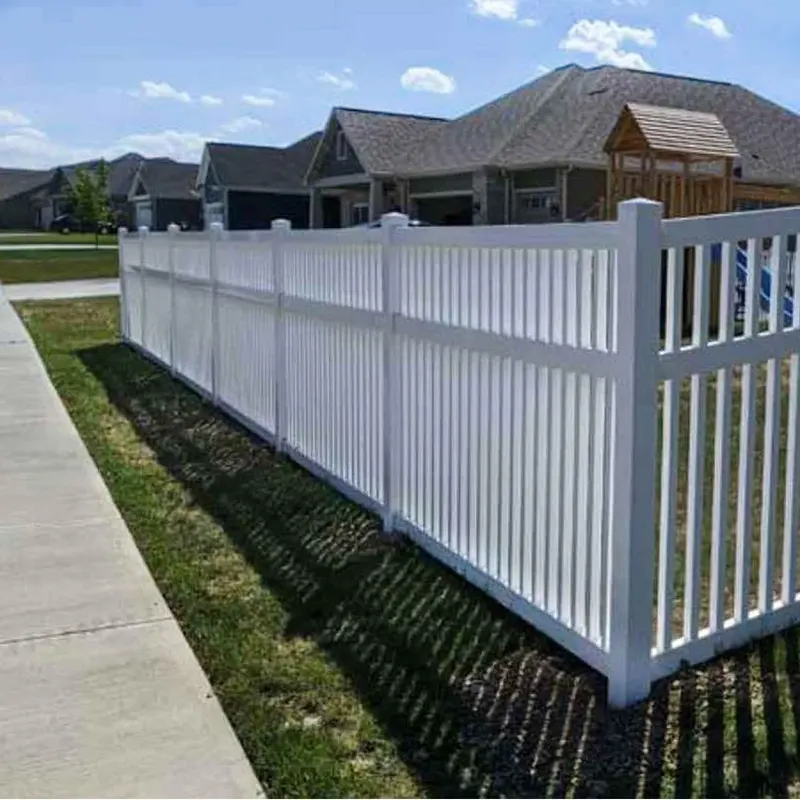

In the realm of residential fencing solutions, our 6ft 3 Rails Semi Privacy Vinyl Fence, seamlessly integrating privacy, ventilation, light transmission, and durability. Specifically tailored for residential oases like gardens and patios, this fence offers an unparalleled experience.
When pitted against the 3 Rails Full Privacy PVC Fence Panels, our semi-privacy fence panels showcase a design that is truly a cut above. The strategic spacing of the panels allows for a gentle breeze to flow through. It can eliminate any sense of enclosure and create a refreshing and inviting atmosphere.
Crafted from premium vinyl (PVC), a high-performance polymer celebrated for its outstanding stability and durability, our fence is built to withstand the test of time. Unlike traditional fencing materials that may succumb to the elements, this vinyl fence is impervious to rust, rot, and decay.
In comparison to 2 Rails Flat Top vinyl privacy fences, the distinctive 3 rails structure is a game-changer. It significantly bolsters the overall strength and stability of the fencing, endowing it with enhanced robustness, durability, and weatherproofing capabilities.
As a professional fence manufacturer, we understand that every customer has unique preferences and requirements. That’s why we offer a comprehensive range of privacy fencing panels and accessories. In addition to standard sizes, we provide a wealth of options in terms of heights, widths, styles, and custom colors.
 |
 |
||

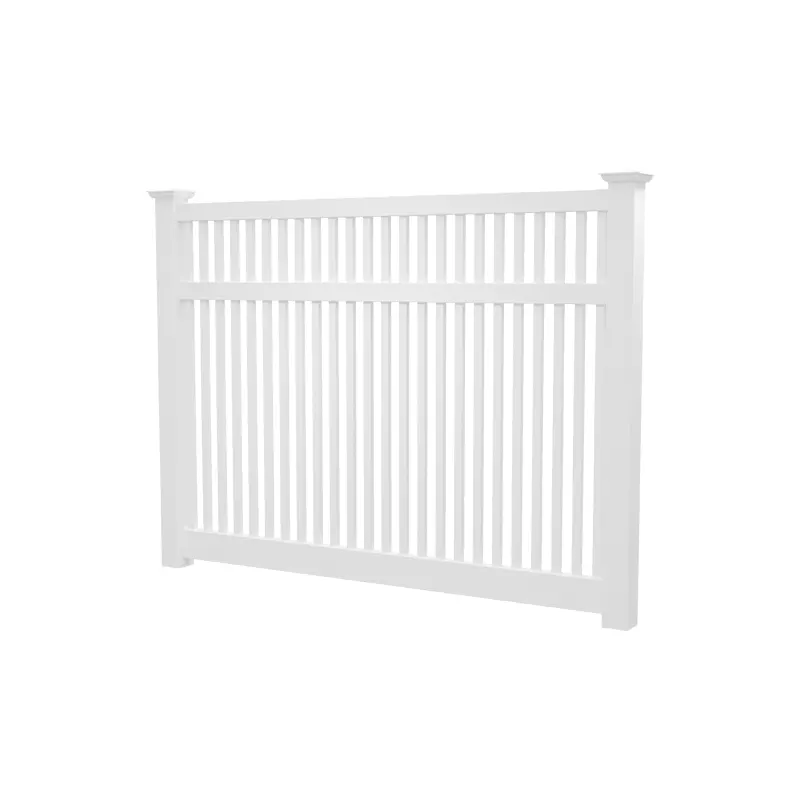

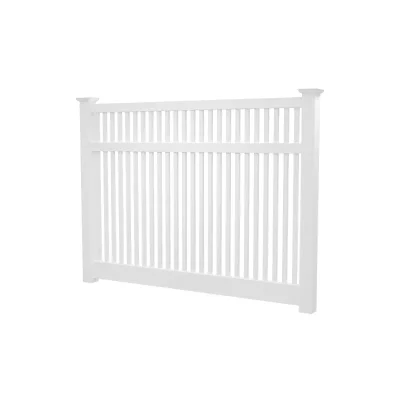

| Item | Dimension(mm) | Thickness(mm) | Qty |
| Top Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Middle Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Bottom Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Picket | 38.1×22.3×1630 | 2.0 | 24 |
| Alum | 2388 | 1 | |
| Post | 127×127×2500 | 3.8 | 1 |
| PVC Posts and Post Caps are not included in each section. Please order separately. | |||
 |
 |
||

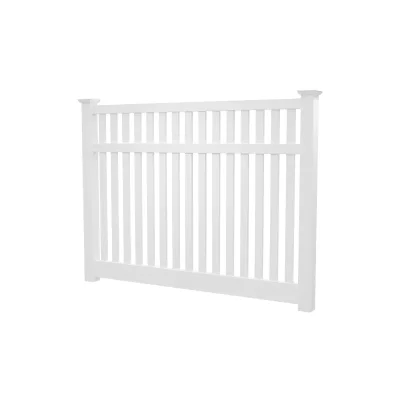

| Item | Dimension(mm) | Thickness(mm) | Qty |
| Top Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Middle Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Bottom Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Picket | 76.2×22.3×1630 | 2.0 | 15 |
| Alum | 2388 | 1 | |
| Post | 127×127×2500 | 3.8 | 1 |
| PVC Posts and Post Caps are not included in each section. Please order separately. | |||
 |
 |
||

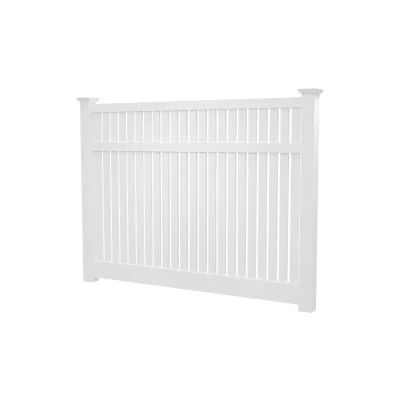

| Item | Dimension(mm) | Thickness(mm) | Qty |
| Top Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Middle Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Bottom Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Picket | 76.2×22.3×1630 | 2.0 | 22 |
| Alum | 2388 | 1 | |
| Post | 127×127×2500 | 3.8 | 1 |
| PVC Posts and Post Caps are not included in each section. Please order separately. | |||
 |
 |
||
| Item | Dimension(mm) | Thickness(mm) | Qty |
| Top Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Middle Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Bottom Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Picket A | 76.2×22.3×1630 | 2.0 | 14 |
| Picket B | 38.1×22.3×1630 | 2.0 | 13 |
| Alum | 2388 | 1 | |
| Post | 127×127×2500 | 3.8 | 1 |
| PVC Posts and Post Caps are not included in each section. Please order separately. | |||
|
 |
||

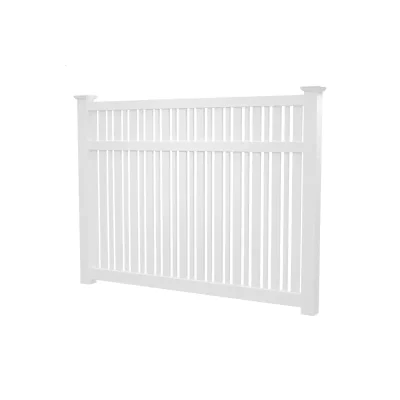

| Item | Dimension(mm) | Thickness(mm) | Qty |
| Top Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Middle Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Bottom Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Picket | 38.1×38.1×1630 | 2.0 | 24 |
| Alum | 2388 | 1 | |
| Post | 127×127×2500 | 3.8 | 1 |
| PVC Posts and Post Caps are not included in each section. Please order separately. | |||
 |
 |
 |
| Arbor Caps | External Flat Cap | Flat Cap |
 |
 |
 |
| Gothic Cap | Sharp Point Cap | New England Cap |
PVC resin is combined with a proprietary blend of additives in a high-shear mixer, ensuring homogeneous dispersion and optimal material properties.
The formulated PVC compound is fed into a single or twin-screw extruder, where it is plasticized and forced through a profile die. Cooling is achieved via water bath or air cooling, followed by controlled traction to maintain dimensional stability.
Extruded profiles are automatically cut to specified lengths using precision cutting equipment, ensuring consistent component dimensions.
CNC milling equipment is employed to create precise holes, slots, and other features required for assembly, adhering to strict tolerances.
Components are subjected to a multi-stage cleaning process, including degreasing and rinsing, to remove surface contaminants and ensure optimal adhesion for any subsequent coatings or treatments.
Trained technicians assemble the fence components using specialized jigs and fixtures, ensuring proper alignment and secure fastening.
Each assembled fence undergoes a comprehensive inspection, including dimensional verification, visual inspection for defects, and functional testing of hardware.
Finished fence components are carefully packaged using appropriate materials and methods to prevent damage during storage and transportation.
