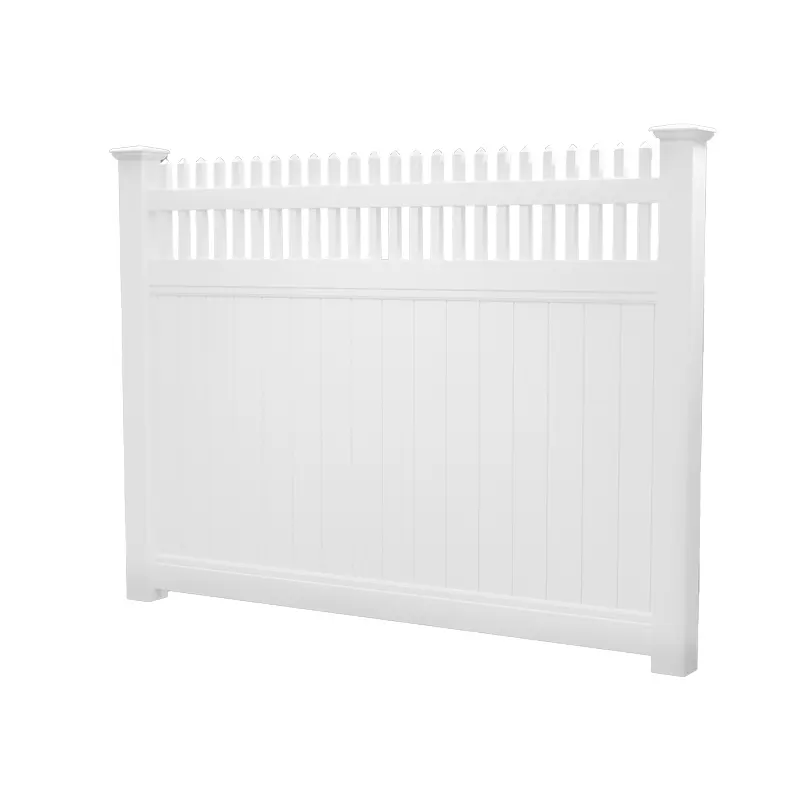

6ft Tall White Straight Picket Top Vinyl Privacy Fence Panel

This 6 ft tall white vinyl privacy fence panel features a straight picket top, consistent with the style of our 5 ft tall straight picket top vinyl privacy fence panels. It can create a safe, private, and aesthetically pleasing outdoor space. This fence is easy to install and maintain, suitable for residential, garden, and commercial applications.

The top picket design is elegant and refined, while the solid bottom panel effectively blocks views and enhances privacy. Made from high-quality PVC material, it boasts excellent weather resistance, corrosion resistance, and UV protection. The 3-rail structure, with an aluminum alloy reinforced bottom rail, provides superior overall strength and stability, able to withstand various weather conditions.

The fence panels utilize a clever interlocking groove and tenon structure design. 24 pickets are evenly spaced between the top rails. Additionally,  we reinforce the bottom cross brace with aluminum alloy, further strengthening its durability and stability. The PVC profiles are manufactured using an extrusion molding process, resulting in precise dimensions and a smooth surface.

The top rail measures 50.8 × 88.9 × 2388 mm with a wall thickness of 2.8 mm. The middle and bottom rails measure 50.8 × 152.4 × 2388 mm. The unit panel dimensions are 287 × 22.3 × 1175 mm, with 8 panels per set and a wall thickness of 1.3 mm. The top picket dimensions are 38.1 × 38.1 × 430 mm with a wall thickness of 2 mm.

As a professional fence manufacturer, we offer not only standard products but also customized services. We can adjust dimensions, colors, and installation methods according to your needs. Whether it’s the length of the fence, the height of the panels, or color requirements, we can customize to meet your exact specifications.

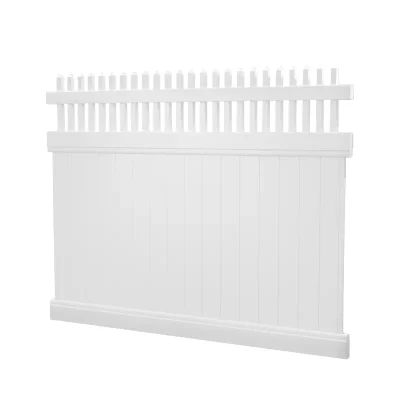

6ft Straight Picket Top Privacy Fence Detail

• The top rail is sized at 50.8 × 88.9 × 2388 mm, with a wall thickness of 2.8 mm.
• The bottom and middle rails share the same length and width of 50.8 × 152.4 × 2388 mm, also featuring a wall thickness of 2.8 mm.
• Each fence panel measures 287 × 22.3 × 1175 mm, with a wall thickness of 1.3 mm.
• There are 8 such panels in each group, ensuring a comprehensive fencing solution.
• The pickets, with dimensions of 38.1 × 38.1 × 430 mm and a wall thickness of 2 mm, are evenly spaced between the top horizontal rail.
• A total of 24 pickets are used, contributing to the fence’s overall structural integrity and aesthetic appeal.

6ft Vinyl Picket Privacy Fence Specification

6ft Vinyl Picket Privacy Fence Color Options

6ft Straight Picket Top Privacy Fence Options

Arbor Caps	External Flat Cap	Flat Cap
Gothic Cap	Sharp Point Cap	New England Cap

Straight Picket Top Privacy Fence Production Process

Raw Material Formulation

PVC resin is combined with a proprietary blend of additives in a high-shear mixer, ensuring homogeneous dispersion and optimal material properties.

Extrusion Processing

The formulated PVC compound is fed into a single or twin-screw extruder, where it is plasticized and forced through a profile die. Cooling is achieved via water bath or air cooling, followed by controlled traction to maintain dimensional stability.

Automated Cutting

Extruded profiles are automatically cut to specified lengths using precision cutting equipment, ensuring consistent component dimensions.

Machining Operations

CNC milling equipment is employed to create precise holes, slots, and other features required for assembly, adhering to strict tolerances.

Surface Preparation

Components are subjected to a multi-stage cleaning process, including degreasing and rinsing, to remove surface contaminants and ensure optimal adhesion for any subsequent coatings or treatments.

Mechanical Assembly

Trained technicians assemble the fence components using specialized jigs and fixtures, ensuring proper alignment and secure fastening.

Quality Control Inspection

Each assembled fence undergoes a comprehensive inspection, including dimensional verification, visual inspection for defects, and functional testing of hardware.

Protective Packaging

Finished fence components are carefully packaged using appropriate materials and methods to prevent damage during storage and transportation.

Straight Picket Top Privacy PVC Fence Advantages

• DIY Friendly: Easy installation saves you time and money.
• Low Maintenance: Enjoy lasting beauty with minimal upkeep.
• Quick Install: Lightweight design for fast and easy setup.
• Privacy & Value: Enhance your home’s curb appeal and property value.
• Customizable: Create a unique fence to match your style.

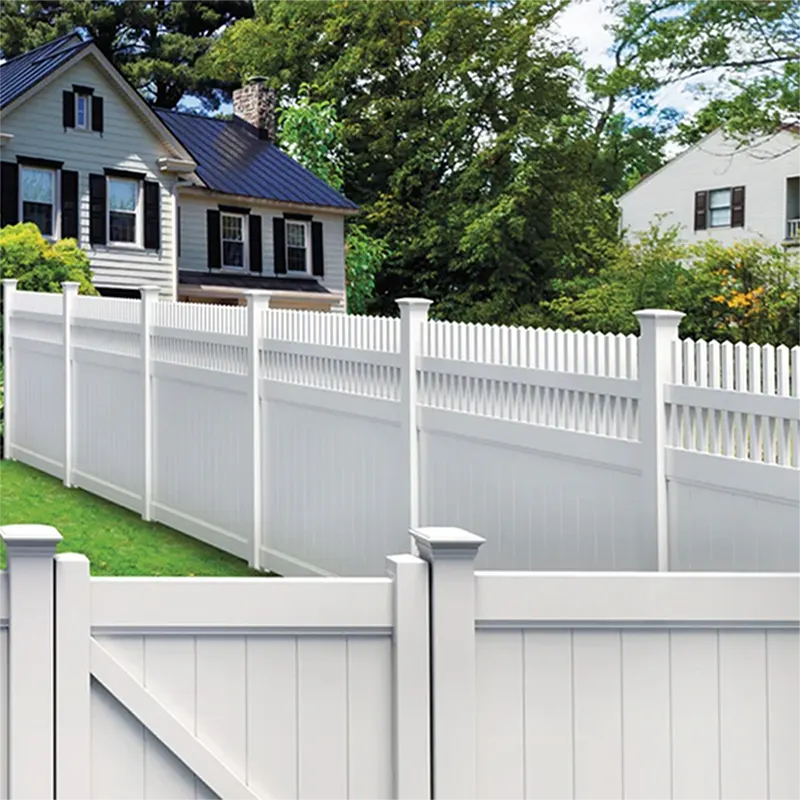

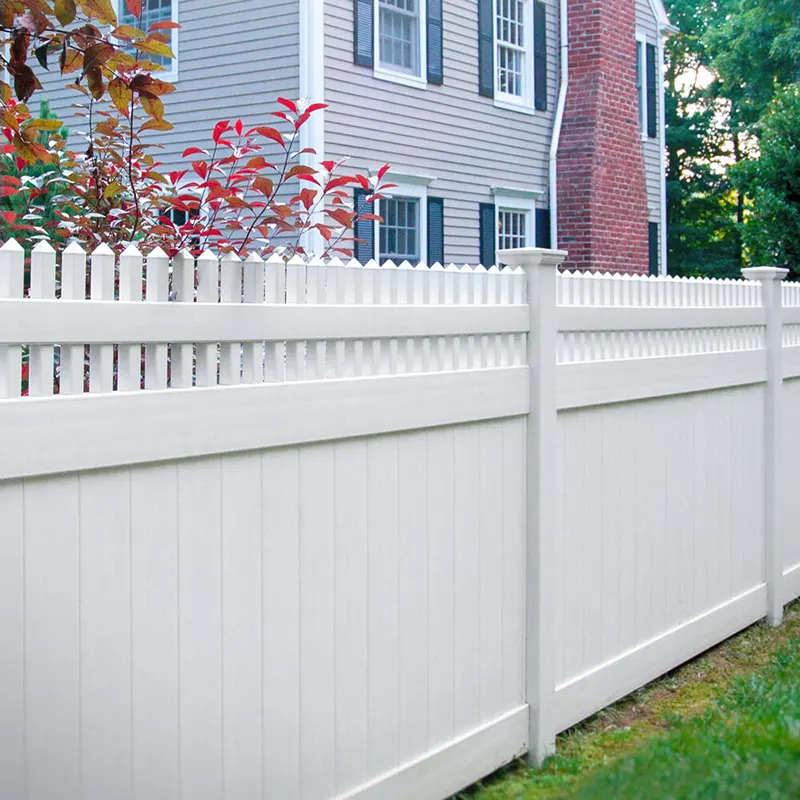

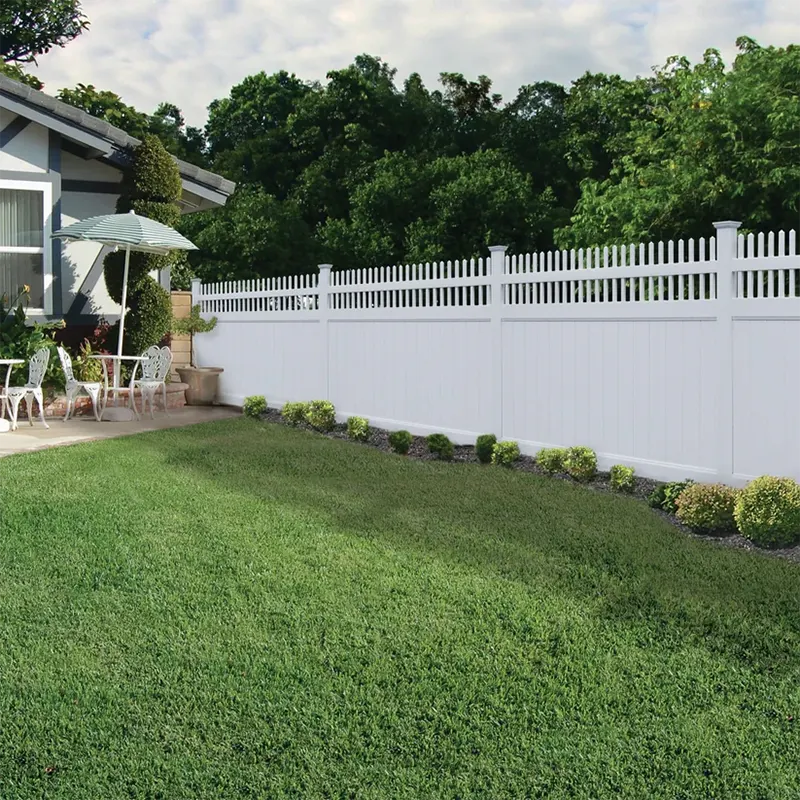

6ft Straight Picket Top Privacy Fence Application

• Family Privacy: The 6ft height provides unparalleled privacy for you and your family, effectively blocking outside views and allowing you to fully enjoy your yard life.
• Safe and Worry-Free Play Area: Creates a safe and secluded play space for children and pets, away from street distractions, allowing them to play freely.
• Enhancing Yard Aesthetics: Classic white paired with an elegant Picket Top adds a touch of sophistication and cleanliness to your yard, enhancing the overall value of your home.
• Ideal Applications: Suitable for various family needs such as backyard enclosure, pool area separation, pet activity area protection, and garden boundary demarcation.

Straight Picket Top Privacy Fence Packaging

• For Straight Picket Top Privacy Fence, we usually use stretch film packaging for packaging.
• It can reduce collisions in the logistics process. Of course, it can be packaged according to customer needs.
• At the same time, we use sea transportation, which is convenient, stable, and fast.
