5ft Tall White PVC Fence, 5 Top Semi Privacy Vinyl Fence Panels

Model NO：

SFVF012

5 feet tall, providing both privacy and aesthetic appeal.
Fade-resistant and maintenance-free, saving you time and effort.
Durable and long-lasting, a one-time purchase for long-term peace of mind.
UV-resistant and corrosion-resistant, staying like new for years to come.
Affordable price, with support for bulk orders.
Available in various colors and lengths to meet your personalized needs.

Get A Quick Quote

This product is a 5 ft tall White 5-Top Semi-Privacy Vinyl Fence Panel. Its key advantage lies in its semi-privacy design: it encloses the space while the gaps between panels preserve visual openness, offering a more flexible sense of space compared to a 5 ft tall White 5-Top Vinyl Picket Privacy Fence.

Structural design highlights: a uniform 5 ft height with premium vinyl panels effectively defines a courtyard, creating a private and tranquil retreat. The lower portion features a finely slit pattern, while the upper portion employs five symmetrically spaced posts. This combination provides a solid sense of enclosure without the heaviness of a fully closed barrier.

Compared with traditional wooden fences, this vinyl fence delivers superior durability and lower maintenance costs. Made from high-quality PVC, it is built for a long service life. Vinyl’s low-maintenance nature keeps its appearance over time, significantly reducing homeowner upkeep expenses.

As a professional fence system manufacturer, we offer highly customizable semi-privacy vinyl fence solutions. Our range includes multiple colors and styles, with flexible options for fence spacing. Whether you need adjustments to size, color, or height, we provide professional, high-quality customization tailored to your preferences.

5ft Semi Privacy Vinyl Fence Specification

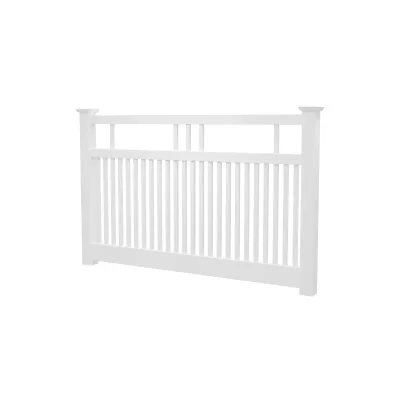

Semi Pricay 3824-1.5m


Item	Dimension	Thickness	Qty
Top Rail	50.8×88.9×2388	2.8	1
Middle Rail	50.8×88.9×2388	2.8	1
Bottom Rail	50.8×152.4×2388	2.8	1
Top Picket	38.1×22.3×375	2.0	5
Picket	38.1×22.3×985	2.0	24
Alum	2388		1
Post	127×127×2200	3.8	1
PVC Posts and Post Caps are not included in each section. Please order separately.

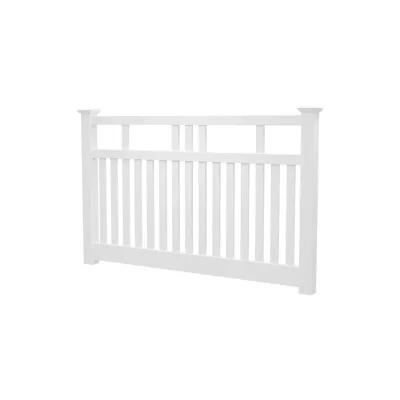

Semi Privacy 5-7615-1.5m


Item	Dimension	Thickness	Qty
Top Rail	50.8×88.9×2388	2.8	1
Middle Rail	50.8×88.9×2388	2.8	1
Bottom Rail	50.8×152.4×2388	2.8	1
Top Picket	76.2×22.3×375	2.0	5
Picket	76.2×22.3×985	2.0	15
Alum	2388		1
Post	127×127×2200	3.8	1
PVC Posts and Post Caps are not included in each section. Please order separately.

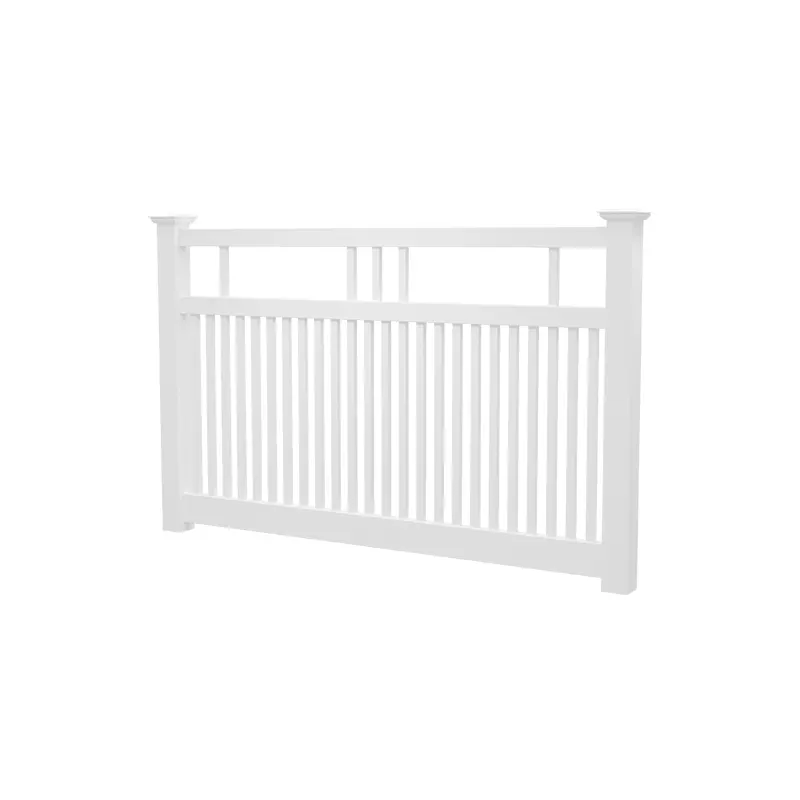

Semi Privacy S5-3824-1.5m


Item	Dimension	Thickness	Qty
Top Rail	50.8×88.9×2388	2.8	1
Middle Rail	50.8×88.9×2388	2.8	1
Bottom Rail	50.8×152.4×2388	2.8	1
Top Picket	38.1×38.1×375	2.0	5
Picket	38.1×38.1×985	2.0	24
Alum	2388		1
Post	127×127×2200	3.8	1
PVC Posts and Post Caps are not included in each section. Please order separately.

5ft Semi Privacy Vinyl Fence Detail

This product features a pre-punched design, which, when used with a complete set of installation accessories, simplifies the installation process to the greatest extent, providing an efficient and convenient assembly experience.
The main body of the fence is made of premium white UV-resistant PVC material. Its excellent UV resistance and weather resistance ensure color stability and material integrity over long-term use.
The grooves not only enhance the visual appeal but also work in conjunction with the connecting structure to achieve seamless connections between components, ensuring the overall structural stability.
The bottom rail is reinforced with aluminum alloy, significantly improving the overall strength and stability of the fence.

Semi Privacy PVC Fence Panels Color Options

5ft 5 Top Semi Privace Fence Cap Options


Arbor Caps	External Flat Cap	Flat Cap

Gothic Cap	Sharp Point Cap	New England Cap

5 ft Semi Privacy Fence Production Process

Raw Material Formulation

PVC resin is combined with a proprietary blend of additives in a high-shear mixer, ensuring homogeneous dispersion and optimal material properties.

Extrusion Processing

The formulated PVC compound is fed into a single or twin-screw extruder, where it is plasticized and forced through a profile die. Cooling is achieved via water bath or air cooling, followed by controlled traction to maintain dimensional stability.

Automated Cutting

Extruded profiles are automatically cut to specified lengths using precision cutting equipment, ensuring consistent component dimensions.

Machining Operations

CNC milling equipment is employed to create precise holes, slots, and other features required for assembly, adhering to strict tolerances.

Surface Preparation

Components are subjected to a multi-stage cleaning process, including degreasing and rinsing, to remove surface contaminants and ensure optimal adhesion for any subsequent coatings or treatments.

Mechanical Assembly

Trained technicians assemble the fence components using specialized jigs and fixtures, ensuring proper alignment and secure fastening.

Quality Control Inspection

Each assembled fence undergoes a comprehensive inspection, including dimensional verification, visual inspection for defects, and functional testing of hardware.

Protective Packaging

Finished fence components are carefully packaged using appropriate materials and methods to prevent damage during storage and transportation.

5ft Semi Privacy PVC Fence Advantages

Balancing Privacy and Openness: The panels, through specific spacing or design, allow air and light to circulate while effectively blocking direct views.
Innovative Design, Rejecting Monotony: Privacy protection is achieved through the distribution of pickets and the spacing of the slats, while avoiding complete enclosure of the outdoor space.
High-Quality Materials: High-grade vinyl panels are used, ensuring material quality and durability.
Quick Installation: The fence panels come in a variety of styles and are lightweight, allowing ordinary households to quickly install them without professional skills.
Low-Cost Maintenance: Durable materials and low maintenance costs mean minimal daily upkeep, saving time and effort, and ensuring long-term durability.
Personalized Customization: Sizes and colors can be customized to your needs, creating a unique fence landscape.

5ft Semi Privacy Vinyl Fence Application

Residential Boundaries: Clearly delineates your property from your neighbors’ without completely blocking views or airflow.
Child Safety: Offers a degree of containment for young children playing in the yard, preventing them from wandering too far.
Aesthetic Appeal: Enhances the curb appeal of your home and yard, creating a more polished and finished look.
Sectioning Large Yards: Create distinct zones within your yard, such as separating a play area from a garden or a pet run from a patio.
Visual Screening: Can be used to block unsightly views of utility boxes, compost bins, or neighboring structures without creating a solid wall.

5 Top Semi Privacy Fence Packaging

For 5ft 5 Top Semi Privacy Vinyl Fence, we usually use stretch film packaging for packaging.
It can reduce collisions in the logistics process. Of course, it can be packaged according to customer needs.
At the same time, we use sea transportation, which is convenient, stable, and fast.
