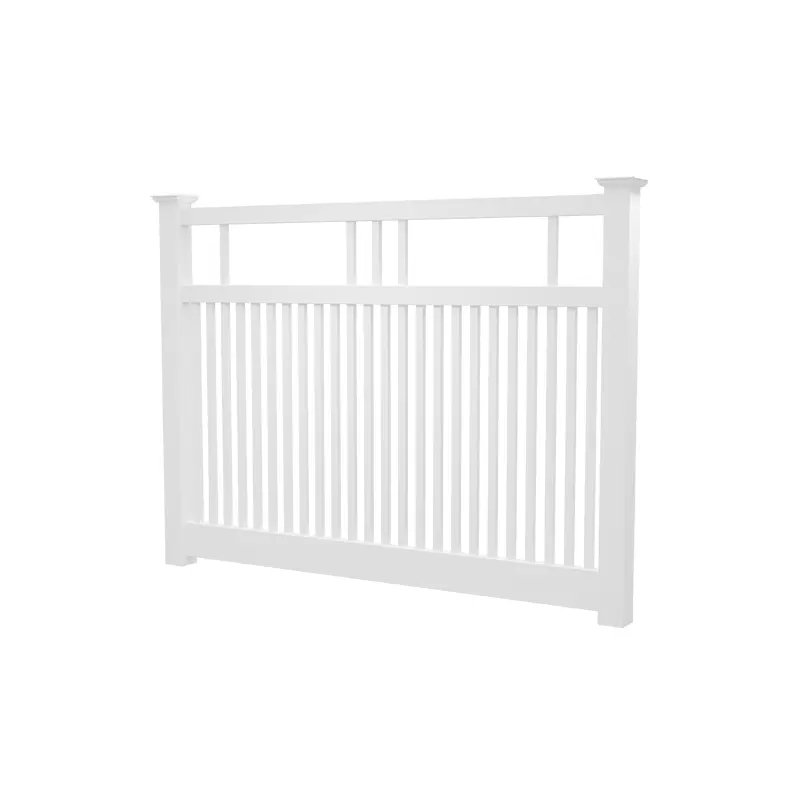

Create a private and inviting outdoor oasis with our 5ft White 5-Top Semi-Privacy Vinyl Fence Panel. Its key advantage lies in its semi-privacy design: it encloses the space while the gaps between panels preserve visual openness, offering a more flexible sense of space compared to a 5 ft tall White 5-Top Vinyl Picket Privacy Fence and 5ft 5 top Semi Privacy Vinyl Fence Panels.
With a consistent 5 ft height and top vinyl panels, it precisely demarcates your courtyard, transforming it into a private and serene sanctuary. The lower part of the fence showcases a finely slit pattern, while the upper part is adorned with five symmetrically arranged posts. This combination creates a substantial sense of enclosure without the oppressiveness associated with a fully enclosed structure.
When pitted against traditional wooden fences, our vinyl fence stands head and shoulders above in terms of durability and maintenance costs. Constructed from high-quality PVC, it is engineered to last for an extended period. The low-maintenance nature of vinyl ensures that it retains its pristine appearance over time, sparing homeowners from the hefty expenses and time-consuming efforts associated with regular upkeep.
As a professional fence system manufacturer, we take pride in offering highly customizable semi-privacy vinyl fence solutions. Our product portfolio boasts a wide array of colors and styles, allowing you to find the perfect match for your property’s aesthetic. Moreover, we offer flexible options for fence spacing. Whether you have specific requirements regarding size, color, or height.
 |
 |
||

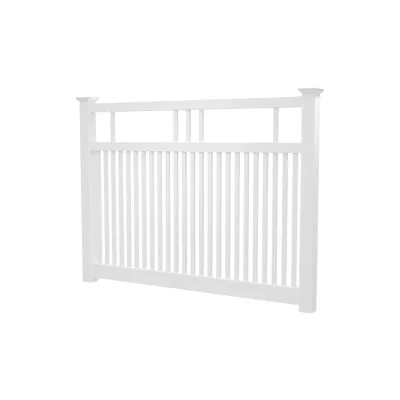

| Item | Dimension | Thickness | Qty |
| Top Rail | 50.8×88.9×2388 | 2.8 | 1 |
| Middle Rail | 50.8×88.9×2388 | 2.8 | 1 |
| Bottom Rail | 50.8×152.4×2388 | 2.8 | 1 |
| Top Picket | 38.1×22.3×375 | 2.0 | 5 |
| Picket | 38.1×22.3×985 | 2.0 | 24 |
| Alum | 2388 | 1 | |
| Post | 127×127×2200 | 3.8 | 1 |
| PVC Posts and Post Caps are not included in each section. Please order separately. | |||
 |
 |
||

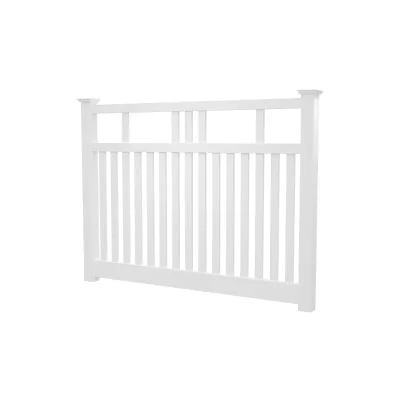

| Item | Dimension | Thickness | Qty |
| Top Rail | 50.8×88.9×2388 | 2.8 | 1 |
| Middle Rail | 50.8×88.9×2388 | 2.8 | 1 |
| Bottom Rail | 50.8×152.4×2388 | 2.8 | 1 |
| Top Picket | 76.2×22.3×375 | 2.0 | 5 |
| Picket | 76.2×22.3×985 | 2.0 | 15 |
| Alum | 2388 | 1 | |
| Post | 127×127×2200 | 3.8 | 1 |
| PVC Posts and Post Caps are not included in each section. Please order separately. | |||
 |
 |
||
| Item | Dimension | Thickness | Qty |
| Top Rail | 50.8×88.9×2388 | 2.8 | 1 |
| Middle Rail | 50.8×88.9×2388 | 2.8 | 1 |
| Bottom Rail | 50.8×152.4×2388 | 2.8 | 1 |
| Top Picket | 38.1×38.1×375 | 2.0 | 5 |
| Picket | 38.1×38.1×985 | 2.0 | 24 |
| Alum | 2388 | 1 | |
| Post | 127×127×2200 | 3.8 | 1 |
| PVC Posts and Post Caps are not included in each section. Please order separately. | |||
 |
 |
 |
| Arbor Caps | External Flat Cap | Flat Cap |
 |
 |
 |
| Gothic Cap | Sharp Point Cap | New England Cap |
PVC resin is combined with a proprietary blend of additives in a high-shear mixer, ensuring homogeneous dispersion and optimal material properties.
The formulated PVC compound is fed into a single or twin-screw extruder, where it is plasticized and forced through a profile die. Cooling is achieved via water bath or air cooling, followed by controlled traction to maintain dimensional stability.
Extruded profiles are automatically cut to specified lengths using precision cutting equipment, ensuring consistent component dimensions.
CNC milling equipment is employed to create precise holes, slots, and other features required for assembly, adhering to strict tolerances.
Components are subjected to a multi-stage cleaning process, including degreasing and rinsing, to remove surface contaminants and ensure optimal adhesion for any subsequent coatings or treatments.
Trained technicians assemble the fence components using specialized jigs and fixtures, ensuring proper alignment and secure fastening.
Each assembled fence undergoes a comprehensive inspection, including dimensional verification, visual inspection for defects, and functional testing of hardware.
Finished fence components are carefully packaged using appropriate materials and methods to prevent damage during storage and transportation.
