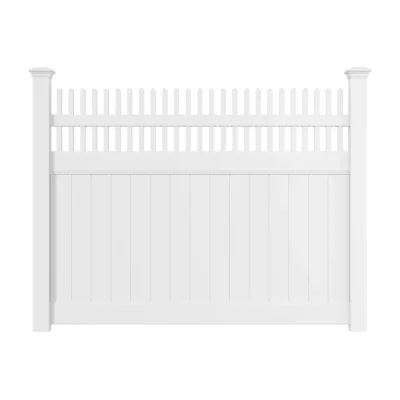

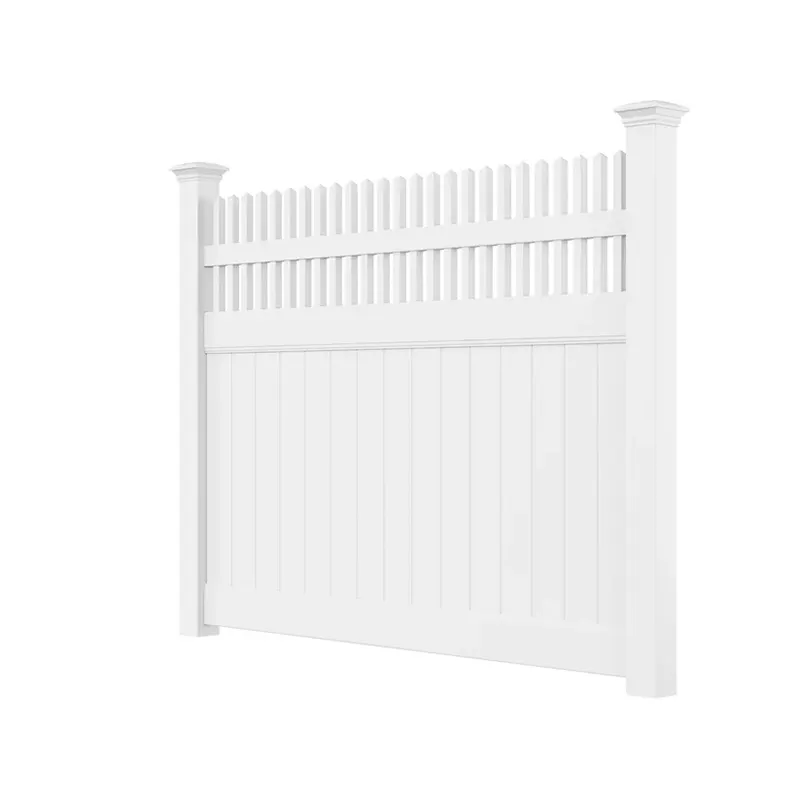

Imagine a beautiful, secure, and private outdoor space where you can relax and enjoy life. Our 5ft White Vinyl Privacy Fence Panel with Straight Picket Top delivers just that. Designed for residential, garden, and commercial spaces, this fence is similar to our 5ft Tall White Closed Vinyl Picket Privacy Fence, offering easy installation, low maintenance, and lasting beauty.
Crafted from high-quality, weather-resistant PVC, this fence resists fading, warping, and corrosion, ensuring years of worry-free enjoyment. UV resistance protects against sun damage. A robust 3-rail design, with aluminum reinforced bottom rail, provides exceptional strength and stability, even in harsh weather conditions.
There are 24 pickets evenly spaced between the top crossbeams. The interlocking groove design and mortise-and-tenon structure make installation a breeze. Simple daily cleaning is all it takes to keep your fence looking its best.
It has a 3-rail design. The top rail measures 50.8 × 88.9 × 2388 mm, the bottom and middle rails measure 50.8 × 152.4 × 2388 mm, with a wall thickness of 2.8 mm. Each fence panel measures 287 x 22.3 x 925 mm. A set contains 8 panels with a wall thickness of 1.3 mm. The top picket measures 38.1 x 38.1 x 320 mm.
As a professional fence manufacturer, we understand that one size doesn’t fit all. That’s why we not only offer standard products but also provide comprehensive customization services. Whether you have specific requirements regarding the site length, panel height, or color, we can tailor the fence to meet your exact needs.
| Item | Dimension(mm) | Thickness(mm) | Qty |
| Top Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Middle Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Bottom Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Picket | 38.1×38.1×380 | 2 | 24 |
| U-Channel | 854 | 1.2 | 2 |
| Panel | 287×22.3×925 | 1.3 | 8 |
| Alum | 2388 | 1 | |
| Post | 127×127×2200 | 3.8 | 1 |
| PVC Posts and Post Caps are not included in each section. Please order separately. | |||
 |
 |
 |
| Arbor Caps | External Flat Cap | Flat Cap |
 |
 |
 |
| Gothic Cap | Sharp Point Cap | New England Cap |
PVC resin is combined with a proprietary blend of additives in a high-shear mixer, ensuring homogeneous dispersion and optimal material properties.
The formulated PVC compound is fed into a single- or twin-screw extruder, where it is plasticized and forced through a profile die. Cooling is achieved via water bath or air cooling, followed by controlled traction to maintain dimensional stability.
Extruded profiles are automatically cut to specified lengths using precision cutting equipment, ensuring consistent component dimensions.
CNC milling equipment is employed to create precise holes, slots, and other features required for assembly, adhering to strict tolerances.
Components are subjected to a multi-stage cleaning process, including degreasing and rinsing, to remove surface contaminants and ensure optimal adhesion for any subsequent coatings or treatments.
Trained technicians assemble the fence components using specialized jigs and fixtures, ensuring proper alignment and secure fastening.
Each assembled fence undergoes a comprehensive inspection, including dimensional verification, visual inspection for defects, and functional testing of hardware.
Finished fence components are carefully packaged using appropriate materials and methods to prevent damage during storage and transportation.
