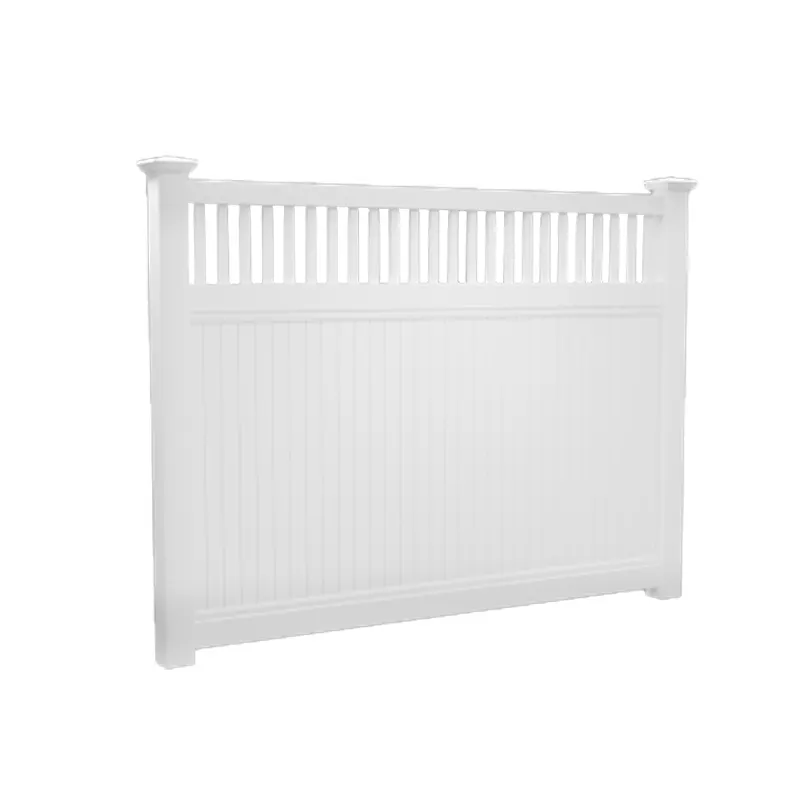

Looking for an outdoor space that offers security, privacy, and aesthetic appeal? This 6ft Tall White Closed Vinyl Picket Privacy Fence is the perfect solution for you. It inherits all the high-quality features of our popular 5ft Tall White Closed Vinyl Picket Privacy Fence, designed to create a tranquil and private outdoor living environment while enhancing the overall beauty of your yard.
Crafted from high-quality, weather-resistant PVC, this fence resists fading, warping, and corrosion, ensuring years of worry-free enjoyment. UV resistance protects against sun damage. With an aluminum-reinforced bottom rail, it provides exceptional strength and stability, even in harsh weather conditions.
The interlocking groove design and mortise-and-tenon structure make installation a breeze. Simple daily cleaning is all it takes to keep your fence looking its best. The classic picket design adds a touch of timeless charm to any landscape.
The fence features a 3-rail design. Top rail: 50.8 × 88.9 × 2388mm, with a wall thickness of 2.8mm. Bottom and middle rails: 50.8 × 152.4 × 2388mm, offer additional support. Each set contains eight fence panels, each sized at 287 x 22.3 x 1175mm with a 1.3mm wall thickness. The top pickets, measuring 38.1 x 38.1 x 370mm, are neatly arranged in a set of 24 between the top rails.
As a professional fence manufacturer, we not only offer standard products. We also provide customization services (including size, color, and installation options) to meet your specific site length, panel height, or color requirements.
| Item | Dimension(mm) | Thickness(mm) | Qty |
| Top Rail | 50.8×88.9× 2388 | 2.8 | 1 |
| Middle Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Bottom Rail | 50.8×152.4× 2388 | 2.8 | 1 |
| Picket | 38.1×38.1×370 | 2 | 24 |
| U-Channel | 1104 | 1.2 | 2 |
| Panel | 287×22.3×1175 | 1.3 | 8 |
| Alum | 2388 | 1 | |
| Post | 127×127×2500 | 3.8 | 1 |
| PVC Posts and Post Caps are not included in each section. Please order separately. | |||
 |
 |
 |
| Arbor Caps | External Flat Cap | Flat Cap |
 |
 |
 |
| Gothic Cap | Sharp Point Cap | New England Cap |
PVC resin is combined with a proprietary blend of additives in a high-shear mixer, ensuring homogeneous dispersion and optimal material properties.
The formulated PVC compound is fed into a single- or twin-screw extruder, where it is plasticized and forced through a profile die. Cooling is achieved via water bath or air cooling, followed by controlled traction to maintain dimensional stability.
Extruded profiles are automatically cut to specified lengths using precision cutting equipment, ensuring consistent component dimensions.
CNC milling equipment is employed to create precise holes, slots, and other features required for assembly, adhering to strict tolerances.
Components are subjected to a multi-stage cleaning process, including degreasing and rinsing, to remove surface contaminants and ensure optimal adhesion for any subsequent coatings or treatments.
Trained technicians assemble the fence components using specialized jigs and fixtures, ensuring proper alignment and secure fastening.
Each assembled fence undergoes a comprehensive inspection, including dimensional verification, visual inspection for defects, and functional testing of hardware.
Finished fence components are carefully packaged using appropriate materials and methods to prevent damage during storage and transportation.
For small orders, sample orders, or air shipments, T/T in advance (telegraphic transfer-bank order). We can also offer preferential and flexible payment terms to our customers to establish a win-win partnership. Other payments: L/C, D/A, D/P, MoneyGram, Paypal, or Escrow. There can be minor variations in different places.
We offer the following post-purchase services following your payment:
We have the best after-sales staff around. Please Contact Us as soon as possible if you experience any after-sale issues. We’ll get back to you as soon as we can with a satisfying answer.
