The Steel Welded Commercial Curved Spear Top Fence features distinctive curved spear-shaped vertical pickets that weave seamlessly through the crossbars, creating a visually striking barrier. This elegant curved spear design infuses sophistication, transforming fence panels into a premium highlight for any property. Ideal for high-security needs, this fence excels in courtyards, pool areas, roadsides, airports, stations, factories, schools, estates, gardens, lawns, and more—providing reliable protection with timeless style.
Low-maintenance by nature, it eliminates the need for frequent repainting—unlike traditional wrought iron—while delivering robust protection without compromising aesthetics. Outperforming aluminum alternatives, our fences are crafted from high-quality galvanized steel that withstands heavy pressure and stress without sagging.
The surface undergoes advanced E-Coating or Powder-Coating treatments for superior corrosion and rust resistance, ensuring longevity in harsh environments. Each panel is precision hand-welded at 360 degrees for unmatched structural integrity.
As a trusted manufacturer, our standard 2-rail steel curved top fence measures 82″ or 94″ in height and 94″ in width. Pair it with compatible fence posts, brackets, and the Steel Welded Commercial Curved Spear Top Gate to enhance overall security and seamless installation. Fully customizable in colors, sizes, and configurations to fit your project perfectly.
Curved Spear Top Fence Details

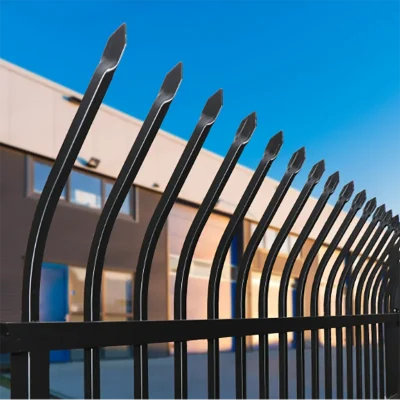

Features a curved spear tip design for both decorative and security purposes.
Constructed from high-quality steel, offering excellent corrosion resistance and weather durability suitable for outdoor environments.
Finished with powder coating, providing a wide range of customization options in color.
Built with a sturdy structure and smooth edge treatment to ensure safe usage and easy installation.
Available in standard size 82”H × 94”W, with custom options available according to customer requirements.
Steel Curved Spear Top Fence Specifications
Rails
2
Width
94”
Height
82”
94”
Railing
1-37/64’’ × 1-3/16’’ × 1-37/64’’ × 12 ga
Picket
3/4”(19 mm) × 16 ga
Material
Steel
Color
Black, or Custom Colors
Finish
E-Coating, Powder-Coating
we can customize the specifications of the products according to customer needs, including size, material, craftsmanship, etc.
Commercial Curved Spear Top Fence Advantages
Curved spear top design not only adds beauty but also effectively enhances anti-climbing performance and improves the overall safety level.
Using high-quality galvanized steel materials and combining efficient powder spraying technology ensures that the product has excellent corrosion resistance and resistance to cracking and embrittlement, extending the service life.
The welded structure improves the overall stability and firmness, and the panel part can be pre-installed in advance, which simplifies the on-site installation process and greatly shortens the construction time.
No need for frequent maintenance, reducing maintenance costs, economical and practical, it is an ideal choice for safety protection.
Raw Material Inspection: We verify the outer diameter and wall thickness of pipes against product specifications to ensure foundational quality from the start.
Cutting: Pipes are precisely cut to the exact lengths outlined in the drawings.
Spear Forming: The pipe tops are flattened and pressed to create the signature spear-shaped points for enhanced security.
Punching Holes: Specialized equipment pre-drills holes in the beams to streamline assembly and installation.
Welding: Pre-galvanized steel pipes are assembled into frames and securely welded for structural integrity.
Phosphating: This treatment etches a dense layer of microscopic pits on the pipe surfaces, boosting powder coating adhesion for long-lasting protection.
Powder Coating: Epoxy-polyester powder is electrostatically applied to the surfaces and cured at high temperatures, achieving a minimum film thickness of ≥80μm. This finish provides superior rust and corrosion resistance, enabling the product to endure harsh environmental conditions.
Quality Control: Every powder-coated metal steel sliding driveway gate undergoes thorough inspection for strength, wall thickness, and coating uniformity, guaranteeing consistent quality. We stand behind each product, delivering reliable performance to our customers.
Packaging: Panels are protected with wrapping film, reinforced square cardboard, and secure strapping tape to prevent damage during transit.
Product Application

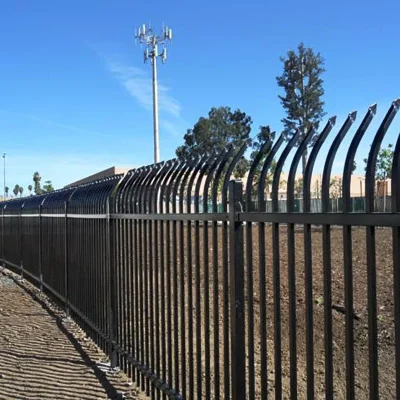

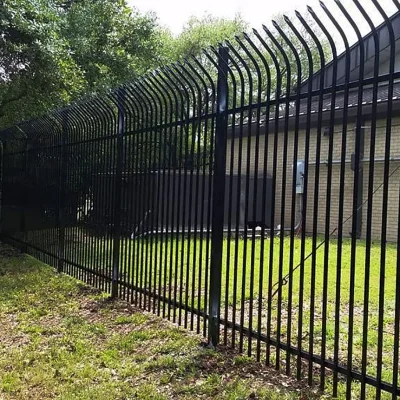

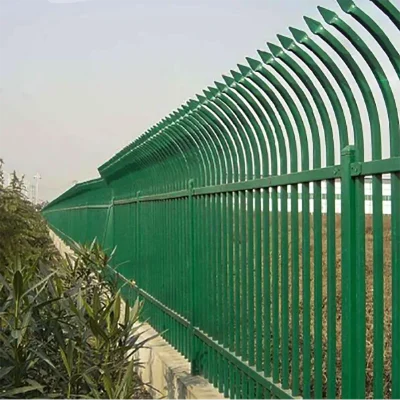

Steel Welded Commercial Curved Spear Top Fence is suitable for courtyards, poolsides, roadsides, airports, stations, factories, schools, estates, gardens and lawns, and other places that require security protection.
Steel Curved Spear Top Fence Packaging
The package is extremely important for the steel curved top fence security.
We will use glue-free plastic film between the two product panels to ensure they do not rub against each other.
We use stretch film + cardboard + strapping tape + pallet packaging, which is very strong and ensures safe transportation in logistics.
At the same time, our customers can easily unload the products using forklifts. If you have other needs, we will pack strictly according to your requirements.
We use sea shipping, which is convenient, fast, and stable.
