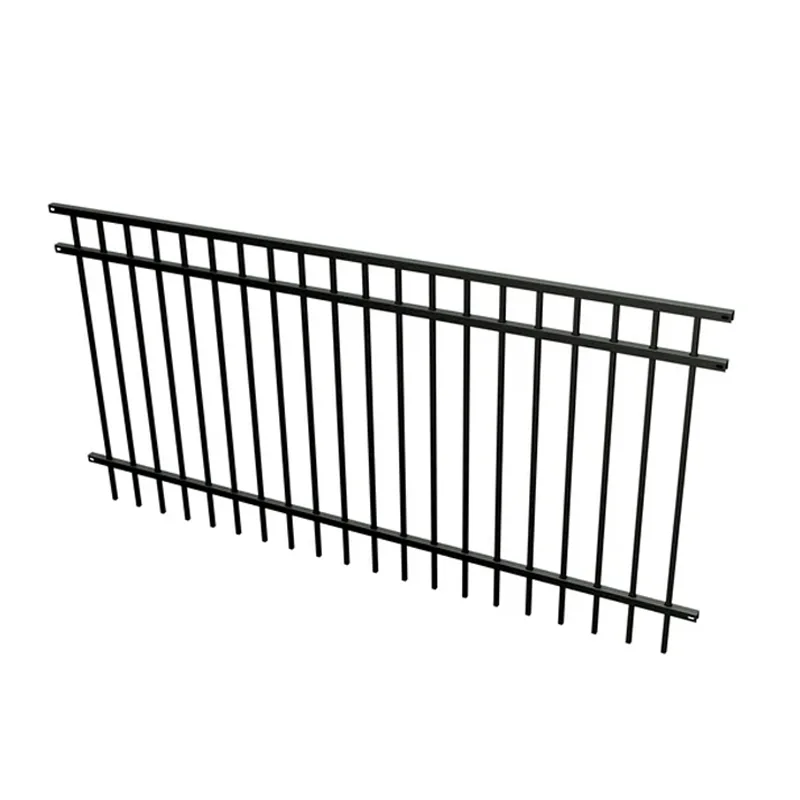

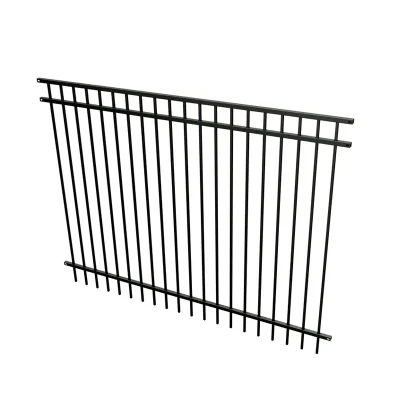

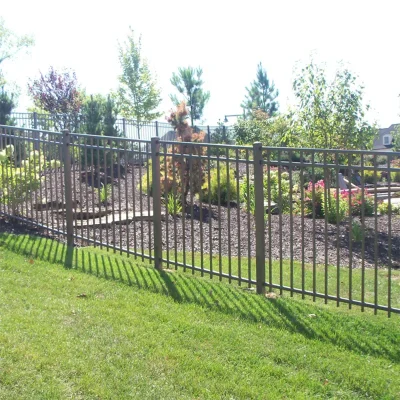

Elevate your property with the Flat Top Rackable Fence, an advanced evolution of our bestselling Flat Top Fence. Its sleek, flat-top profile paired with an innovative adjustable base offers modern sophistication and seamless adaptation to uneven landscapes, ensuring a secure, stable installation every time.
When combined with our durable fence posts, brackets, and Flat Top Rackable Gate, it delivers superior defensive performance—outlining boundaries while providing robust security and timeless curb appeal. Constructed from high-grade galvanized steel, each panel is precision-engineered through rigorous processes for unmatched weather resistance and structural strength.
The dual protection of galvanization and premium powder coating combats corrosion in even the harshest environments, eliminating the need for repaints or rust repairs. This fortified design boosts load-bearing capacity, promising decades of reliable performance without compromise.

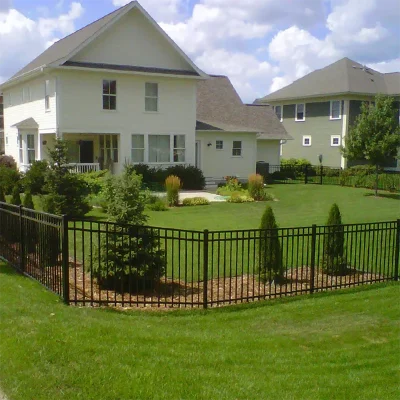

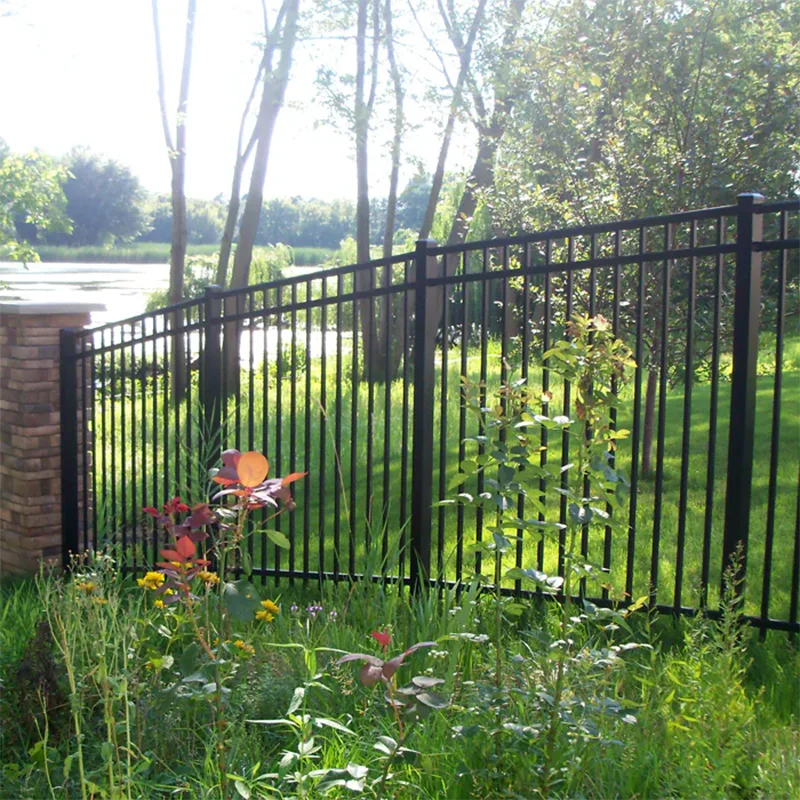

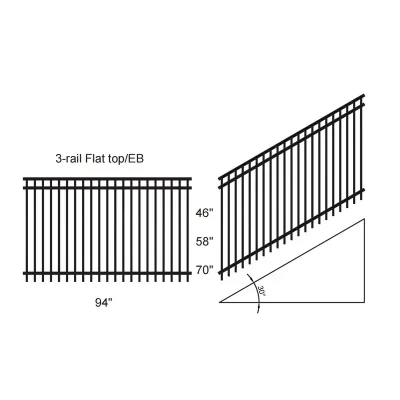

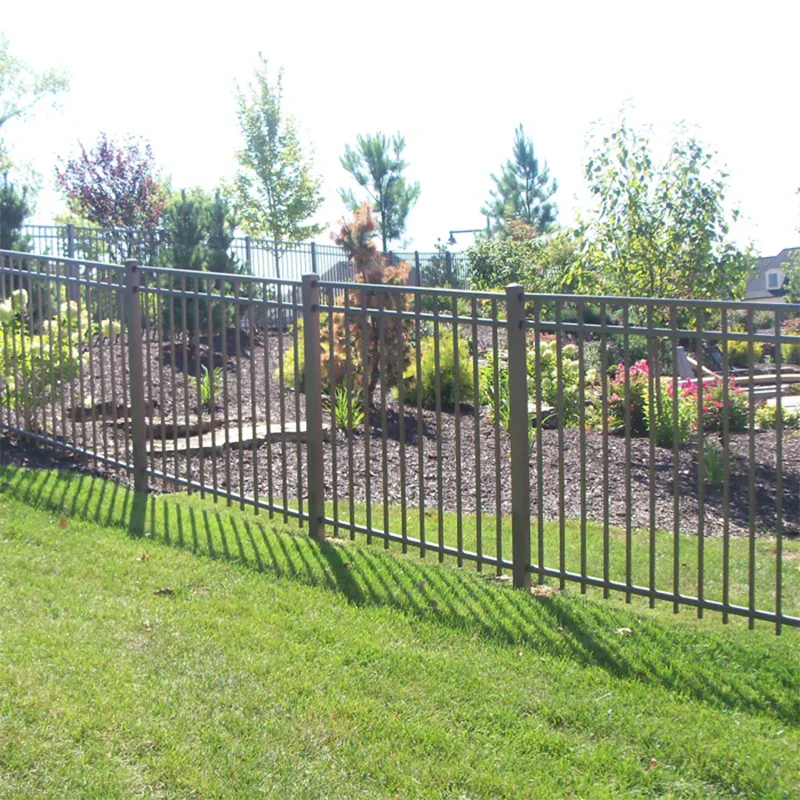

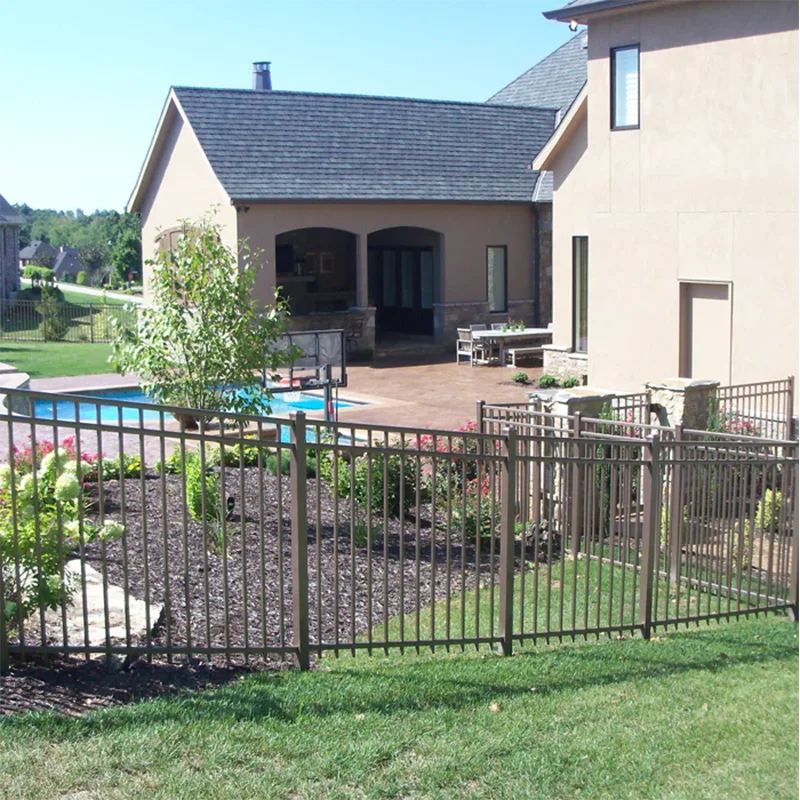

Pre-assembled modular panels make setup a breeze, slashing labor time and costs for quicker project completion. Standard dimensions include heights of 46″, 58″, and 70″, with a consistent 94″ width—perfect for most applications. We specialize in custom styles and sizes tailored to diverse settings, from courtyards and poolside enclosures to roadsides, airports, stations, factories, schools, estates, gardens, lawns, and any site requiring top-tier security.
| size (H) inches | size (W) inches | Number of Horizontal Rails | Number of Vertical Pickets | Weight (kg.) |
| 34 | 94 | 3 | 20 | 21.12 |
| 46 | 94 | 3 | 20 | 24.70 |
| 58 | 94 | 3 | 20 | 28.28 |
| 70 | 94 | 3 | 20 | 31.87 |
| Material | Steel | |||
| Finish | E- Coating, Powder Coating | |||
| Color | Black, Customized Colors | |||
| 5/8″picket-18 ga.-15*15*1.2mm | ||||
| 1-3/16″x 1-5/64″x 1-3/16″rail-14 ga.-30*27.4*30*2.0mm | ||||
| 94″Panel | ||||
| Center Distance of Vertical Pickets 116mm | ||||
|
size (H) inches |
size (W) inches | Number of Horizontal Rails | Number of Vertical Pickets | Weight (kg.) |
| 46 | 94 | 3 | 20 | 36.08 |
| 58 | 94 | 3 | 20 | 41.38 |
| 70 | 94 | 3 | 20 | 46.69 |
| Material | Steel | |||
| Finish | E- Coating, Powder Coating | |||
| Color | Black, Customized Colors | |||
| 3/4″picket-18 ga.-18*18*1.2mm | ||||
| 1-9/16″x 1-3/16″x 1-9/16″rail-14 ga.40*30*40*2.0mm | ||||
| 94″Panel | ||||
| Center Distance of Vertical Pickets 120mm | ||||
 |
 |
 |
 |

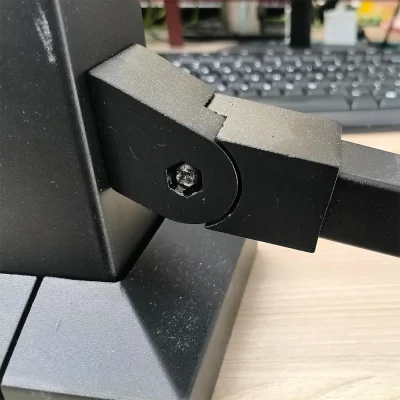

| Fence Brackets | Fence Post | Post Caps | Screws |
Check the outer diameter and wall thickness of the pipes, to ensure that meets the requirements of the fence drawing, thus ensuring quality.
Product unloading, cutting the profile according to the design requirements to obtain the required length.
Punch holes in the cut pipe.
Assemble the fence panels according to the drawing.
Cleaning and roughening the surface by spraying high-speed abrasive particles. It can remove impurities such as rust, oil, and scale.
The phosphating film itself has a certain anti-corrosion ability and can provide excellent adhesion to paint, powder coating, or other organic coatings.
Spray epoxy-polyester powder on the surface, and cure it at high temperature. This process makes the product more rust-proof and corrosion-resistant.
We will conduct a quality inspection on each product to check the strength, wall thickness, and powder coating thickness to ensure each product’s quality.
Professional transportation methods ensure the safe transportation of products.
For small orders, sample orders, or air shipments, T/T in advance (telegraphic transfer-bank order). We can also offer preferential and flexible payment terms to our customers to establish a win-win partnership. Other payments: L/C, D/A, D/P, MoneyGram, Paypal, or Escrow. There can be minor variations in different places.
We offer the following post-purchase services following your payment:
We have the best after-sales staff around. Please Contact Us as soon as possible if you experience any after-sale issues. We’ll get back to you as soon as we can with a satisfying answer.
